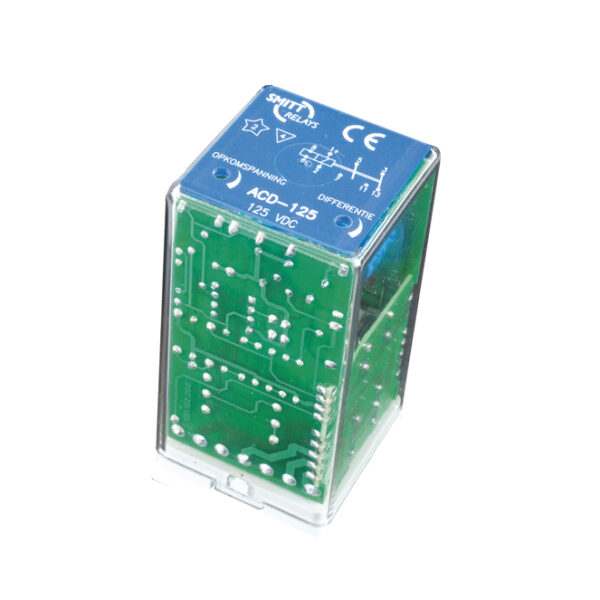

Řada ACD, relé pro monitorování stejnosměrného napětí

Popis

DC voltage monitoring applications, for example battery packs.

  • Smitt style pinning

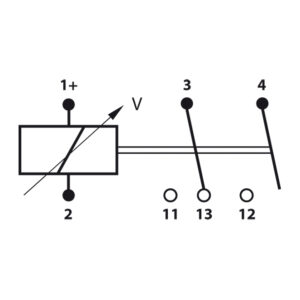

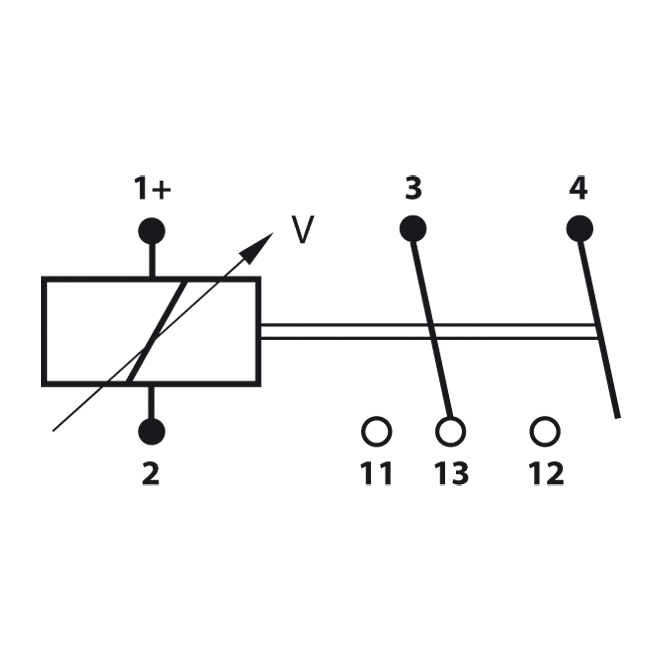

  • 1CO + 1NO contact
  • DC coil
  • Flash barrier
  • Cadmium free contacts
  • Battery voltage, 2 levels

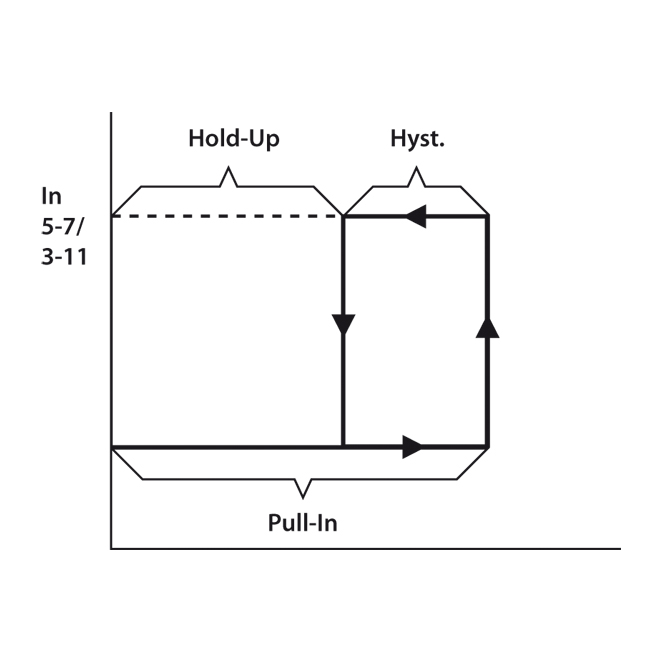

  • Adjustable pull-in & hysteresis
  • Triptime, 20 ms (if 6&8 connected 0,25 s.)
  • Integrated ‚snap-lock‘ retaining clip

See the datasheet in the download section for all specification and options.

See the accessories section for all suitable relay sockets and accessories.

Tento produkt již není dostupný. Náhradní relé je MTDV4.

Dokumentace ke stažení:

general-specifications-nieaf-smitt-acd-relay
