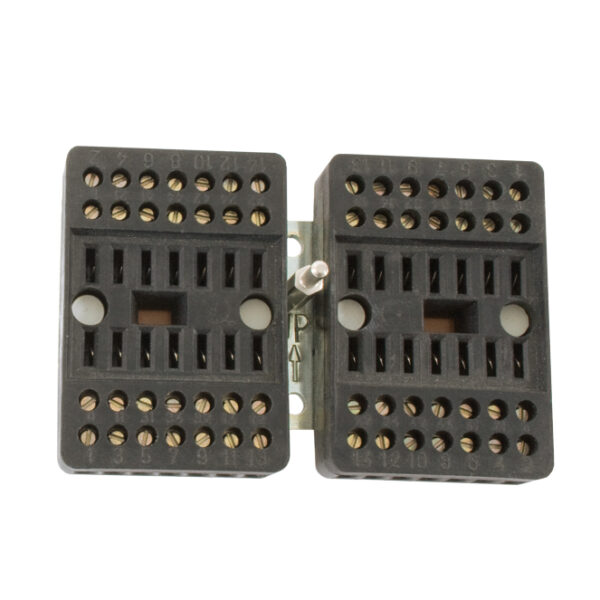

V91, 35 mm (DIN) rail mounting, compact relay socket
For heavy duty, industrial applications, space saving design. Installation and replacement of plug-in relays is made easy and cost saving. No maintenance is required for the user.
Description of V91 compact relay socket
The V91 compact relay socket has one screw terminal per relay contact suitable for two wires up to 2.5 mm2
Features of V91 relay socket
-
Screw terminals
-
Rail mounting 35 mm (DIN)
-
Touch proof IP20
-
Suitable for all D-series power relays
-
Up to 2.5 mm2 wire per connection terminal
-
Trifurcated female receiver for tight grip relay pin
Benefits of V91 relay socket
- Compact design, space saving
- Proven reliable
- Long term availability
- Easy to maintain
- Low life cycle cost
- No maintenance
Tento produkt již není dostupný. Náhradní patice je V93.
