Popis
Funkce
- Low burden
- Self reset contacts
- Hand reset flag indicator
- 6 contacts – specify M or B

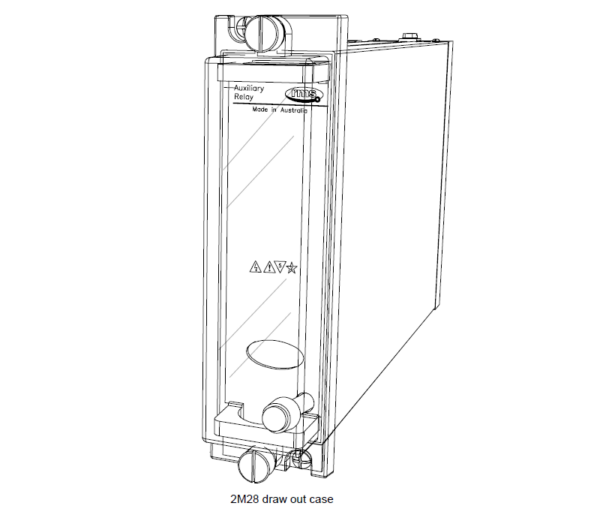

- Draw out case
- Two elements in one case
- Equivalent function to MVAA21
- 6RM202 specification
Aplikace
The operating element for the 6R MATRIX Auxiliary Relay functional elements are designated 6RM & are based on our 6R Series relays.
The type 6RA Series elements are low burden auxiliary relays which can be used where a scheme demands several contacts for event recording, alarm initiation, contact logic arrangements, etc.
Contacts are constructed from silver / copper alloy, shaped & positioned to ensure very reliable, low resistance operation. Over travel of the contacts during each operation causes a wiping action ensuring a clean “make”.
