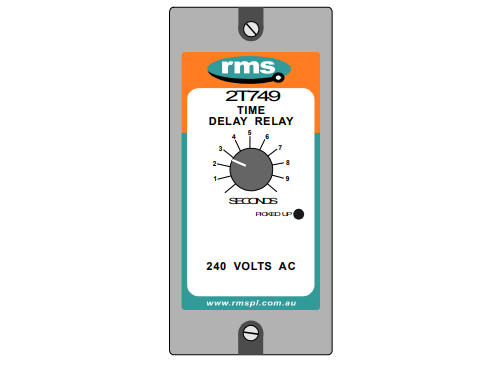

2T749 700 Series Delay On Timer Relay

Popis

Tento produkt je zastaralý.

Zvažte použití relé TDB4 pro vaši aplikaci. Mějte však na paměti, že TDB4 není přímou náhradou za 2T749.

The 2T749 Series relays are solid state general purpose time delay relays with electromechanical output contacts. Designed for application wherever a time delay is required with high accuracy, reliable and maintenance free operation. The 700 Series range of electronic measuring relays are manufactured as a modular approach to electrical system protection & control. Designed to meet rigid Australian & international specifications the 700 Series provide a flexible, cost effective & extremely reliable solution for a multitude of applications under electrically hostile conditions.

Features

  • Delay operate timer
  • Ten year factory warranty
  • Plug in measuring module
  • Double insulated high impact polystyrol case „ Termination socket included for surface mounting enabling front or rear connection with optional DIN rail mounting
  • Proven circuit designs based on over 15 years of field service in hundreds of varied & demanding applications
  • Easy to set calibration scales
  • Tolerance to shock & vibration for generator, compressor & mobile applications

Dokumentace ke stažení

2t749-technical-bulletin
