WDDF series, pulse relay (one shot-off relay)

Categories: , , ,

Description

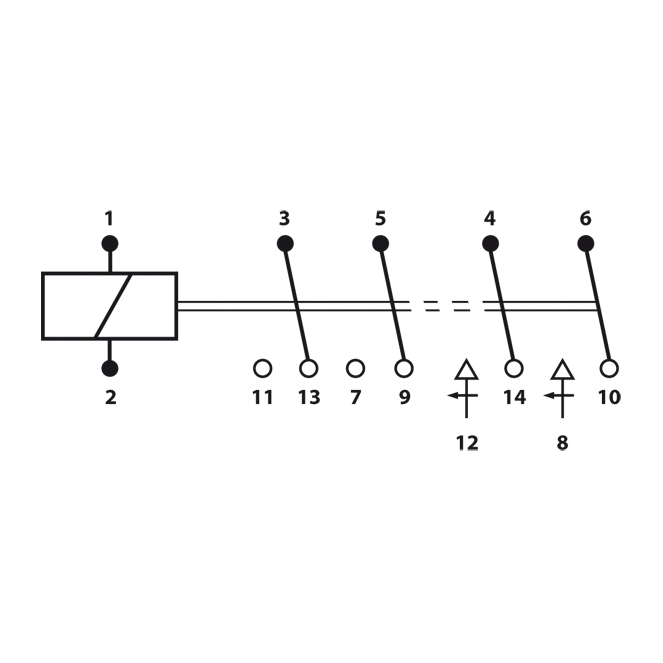

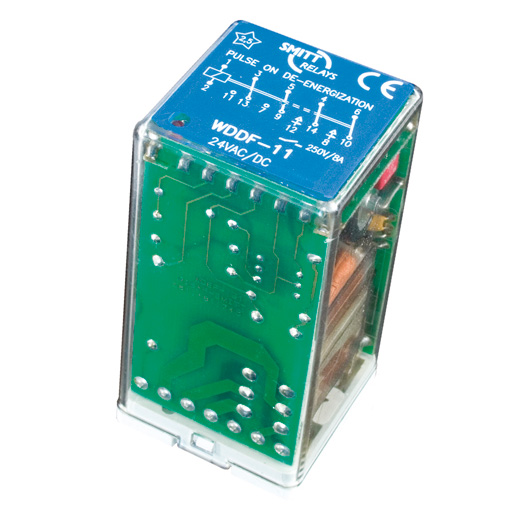

WDDF, pulse relay, 2 C/O and 2 N/C, 8A

Pulse relay (one shot relay) for heavy duty, demanding applications, switching of AC & DC voltages, resistive and/or inductive loads. Generates a 0,5s. (fixed) pulse on de-activation.
  • Plug-in relay
  • Smitt-style pining
  • 2 C/O instant + 2 N/C time contacts
  • Pulse 0,5s. (fixed) on de-activation
  • DC and AC coil
  • Flash barriers
  • LED indicator
  • Cadmium free contacts
  • Integrated ‘snap-lock’ retaining clip

This relay is obsolete from January 1, 2023.

Download:

datasheet-wddf-relays-obsolete-2023

drawings-wddf-relay.zip
