Description

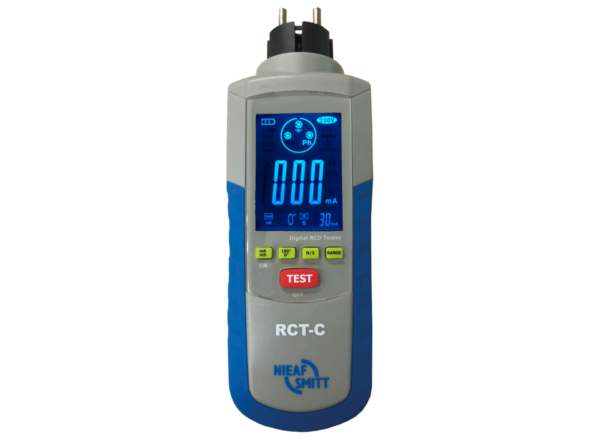

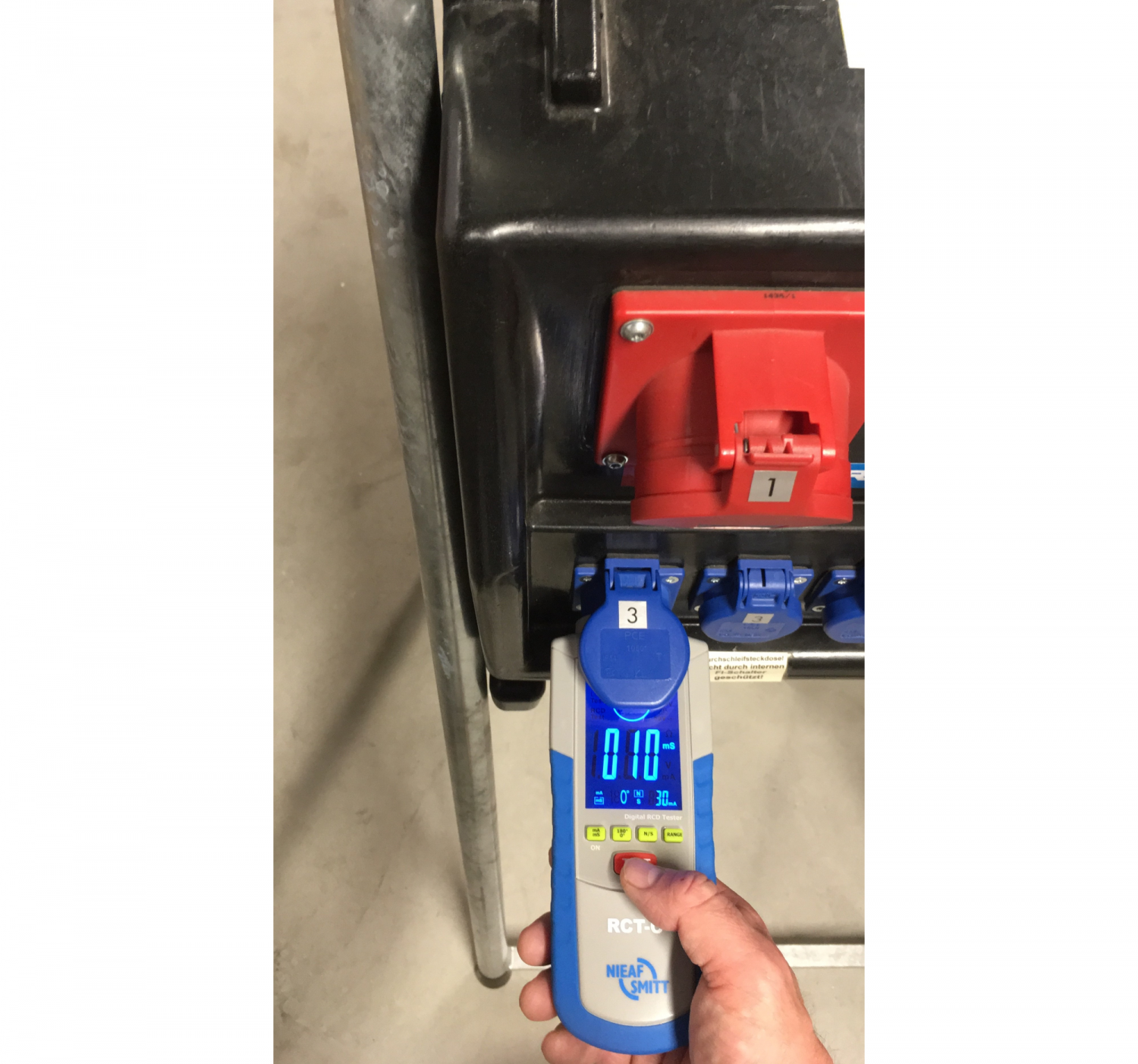

The RCD tester RCT-C is designed to test the RCD devices situated in portable distribution boxes. The test is done according the EN 61557 standard.
Measurements
- Trip current of the RCD
- Trip time of the RCD
Features
- Testing of normal and selective RCD’s
- Start on 0 or 180 degrees
- Voltage detection phase -earth
- Testcurrent of 10/30/100/300/500 and 650 mA

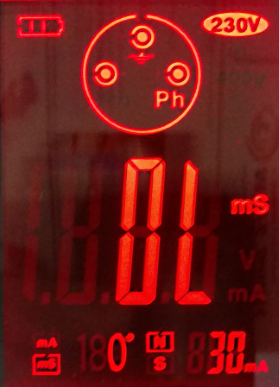

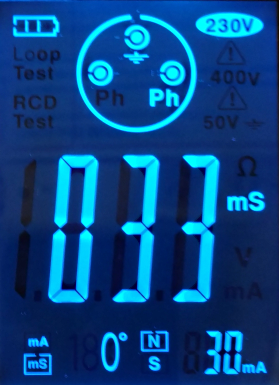

- Dual colour display with backlight
Specifications
| Functions | |
| Voltage | 0…250 V |
| Trip time | 0…2000 ms |
| Trip current | 10/30/100/300/500/650 mA |
| Trip voltage | 0…99.9 V |
| General | |
| Overvoltage category | CAT III 600 V |
| Stanards | EN 61557-6, EN 61010-1 |
| Supply | 4x 1.5 V AA batteries |
| Dimensions | 210 x 71 x 51 mm |
| Weight | 340 g |
| Including | Batteries, manual, certficate |
Ordering code: 626000854
