Description

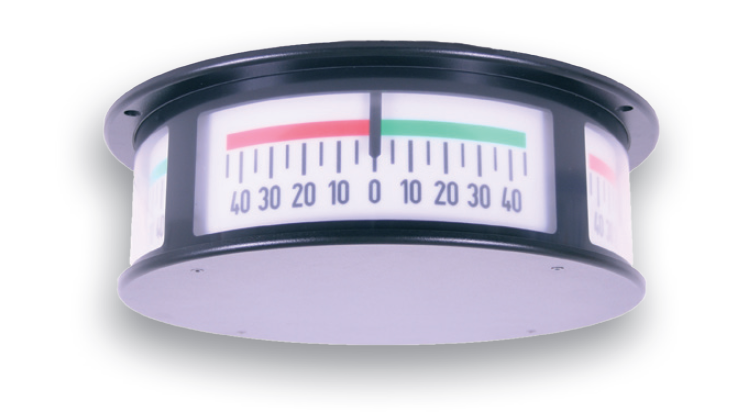

Servo-drive operated deckhead rudder indicator with 3 scales and pointers. Suitable for ceiling mounting. Integrated illumination dimmer and 2 cable glands.
| Model | Dimensions | Weight |
| RCI-400 |
400 x 122 mm
|
3960 g |
| (diameter x height) |
| Illumination | |
| Dimmable pointer illumination | |
| Dimmable scale illuminination |
| Input options | Load |
| 0…10 V | 80 kΩ |
| 0…12 V | 80 kΩ |
| 10…0…10 V | 80 kΩ |
| 12…0…12 V | 80 kΩ |
| 0…20 mA | 100 Ω |
| 4…20 mA | 100 Ω |
| 1…0…1 mA | 1000 Ω |
| 10…0…10 mA | 100 Ω |
| 20…0…20 mA | 50 Ω |
| Scale | |
| Background | black / white |
| Inscription | black / white / yellow |
| Coloured marks and bands | On customer request |
| Company logo | On customer request |
| Pointer options | |
| Deflection | 3 x 70o |
| Colour | black / white / yellow |
| Other pointer colours on request |
| Temperature | |
| Operation | 0…55 °C |
| Storage | -40…0…80 °C |
| Influence on accuracy | 0.5 % / 10 °C |
| Vibration test | |
| 3…13.2 Hz | 2 mm |
| 13.2…100 Hz | 0.7 g |
| General | |
| Glass | Iow-reflecting glass |
| Protection class | IP40 |
| Accuracy | Class 1.5 |
| Mounting | On ceiling of the bridge |
|
Standards
EN 60945:2002
Compliancy
ISO 20673:2007
|
Lloyds approval TA
MED directives:
Rudder A.1/4.20 |
