Description

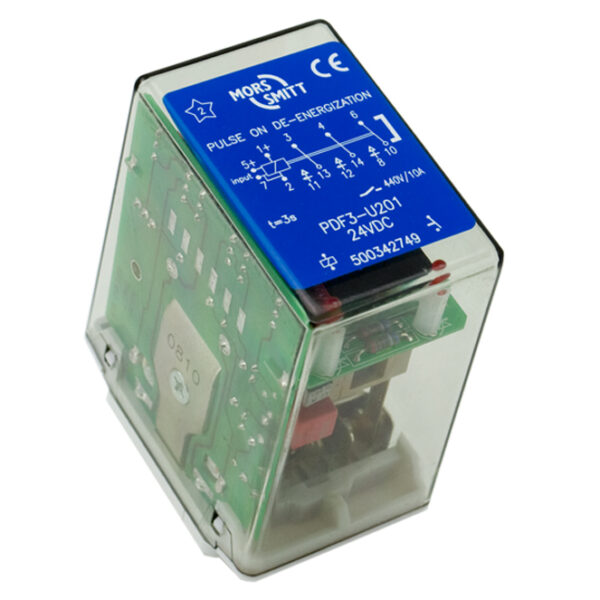

Plug-in electronic railway one-shot relay with three change-over contacts. The relay is activated by the negative going edge of a DC voltage on the input terminals. The pulse time is fixed and standard 3 seconds, other pulse times on request.
The relay has two LEDs which indicate the presence of power supply and contact switching. Standard equipped with magnetic arc blow-out for high breaking capacity and long contact life.
The construction of the relay and choice of materials makes the PDF3-U200 relay suitable to withstand low and high temperatures, shock & vibrating and dry to humid environments.
No external retaining clip needed as integrated ‘snap-lock’ will hold relay into socket under all circumstances and mounting directions.
Compact design, choice of many options and a wide range of sockets makes the PDF3-U200 relay an easy and flexible solution to use.
Application
These relay series are designed for demanding rolling stock applications. The PDF3-U200 is used in applications where the relay must be activated for a fixed time when the voltage on the input terminals drops to zero.
Features
- Plug-in one-shot relay
- 3 C/O contacts
- Activated by negative going edge of DC voltage on input terminals (with auxiliary power supply)Fixed pulse time
- Standard pulse time 3 s, other pulse times on request
- Magnetic arc blow-out
- Two LEDs for status indication
- Flat, square and silver plated relay pins for excellent socket connection
- Integrated snap lock
- Optional positive mechanical keying relay to socket
Benefits
- Proven reliable
- Long term availability
- Easy to maintain
- Low life cycle cost
- No maintenance
Railway compliancy
- EN 50155 Electronic equipment used on rolling stock for railway applications
- IEC 60571 Electronic equipment used on railway vehicles
- IEC 60077 Electrical equipment for rolling stock in railway applications
- IEC 60947 Low voltage switch gear and control gear
- IEC 61373 Rolling stock equipment – Shock and vibration test
- IEC 60947-5-4 Electromechanical components for control applications. This standard examines both coil and contact specifications in depth
- EN 50121 Electromagnetic compatibility for railway applications
- NF F 16-101/102, TS 45545-2 Fire behaviour – Railway rolling stock
- NF F 62-002 On-off contact relays and fixed connections
