Description

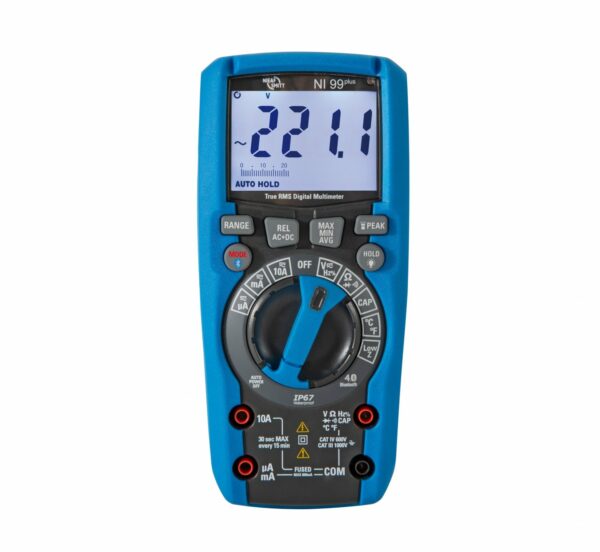

True RMS multimeter with Bluetooth
The NI 99PLUS is an industrial True RMS multimeter with extensive options. Beyond all standard multimeter functions and a temperature measurement, the NI 99PLUS some interesting additional features. so there is a LoZ function to suppress stray voltages. For poorly lit situations, the meter is equipped with a flashlight function on the front and all buttons and the display light up automatically in the dark. Measurements can be made remotely via Bluetooth viewed and logged via a free app.
Characteristics
- True RMS
- AC/DC Voltage up to 1000 V
- AC/DC Current up to 10A (20A for 30sec.)
- Temperature up to 760°C
- Resistance, Capacitance and Frequency Measurement
- Continuity / Diode Test
- Dust and water resistant due to IP67 protection
- LoZ mode for stray voltage suppression
- Front flashlight function
- Auto backlit display and measurement selection
- Bluetooth connection to data logging app

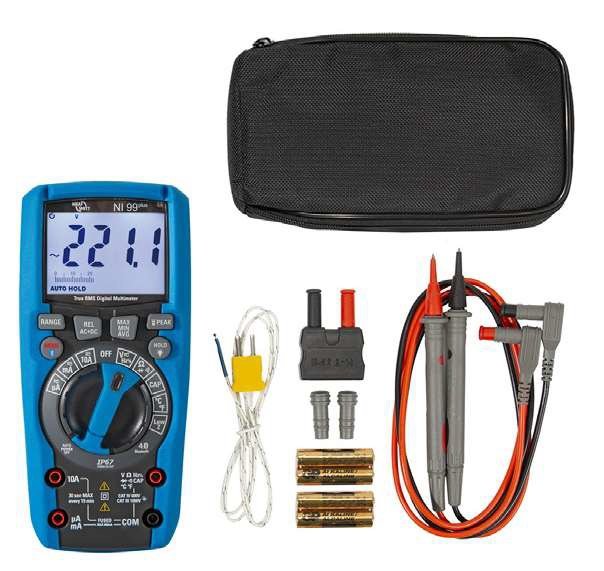

Including
- Instruction manual
- Test leads
- Type K thermocouple
- Carrier bag
- Battery
Specifications
| Functions | Range | Accuracy |
| Voltage |
1000 VAC
1000 VDC
|
+ 1.5 % + 5d
+ 0.5 % + 8d
|
| Current |
1000 AAC
1000 ADC
|
+ 1.0 % + 3d
+ 1.0 % + 3d
|
| Frequency |
10 mHz
|
+ 1.0 % + 3d
|
| Resistance |
60 MΩ
|
+ 1.5 % + 5d
|
| Capicity |
6000 μF
|
+ 3.0 % + 5d
|
| Temperature | 760°C | + 1.0 % + 5d |
| General | |
| Screen resolution |
6000d
|
| Overvoltage category |
CAT III 1000 V / CAT IV 600 V
|
| IP protection | IP67 |
Ordering code: 626005058
