Description

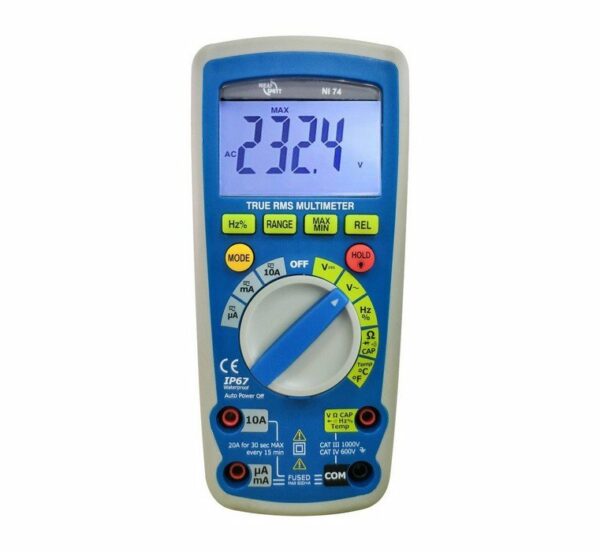

True RMS digital multimeter
The NI 74 is a compact True RMS multimeter with a wide range of possibilities. This makes the NI 74 a perfect meter for users who want that extra like measuring temperature.
The NI 74 is protected against water (IP67).
Features
- True RMS
- AC/DC voltage up to 1000 V
- AC/DC current up to 10 A (20 A for 30 s)
- Temperature up to 760 °C
- Resistance, capacity and frequency measurement
- Continuity- / diode test
- Dust and water protected (IP67)
- Min–max hold
- Duty cycle
- LCD backlight

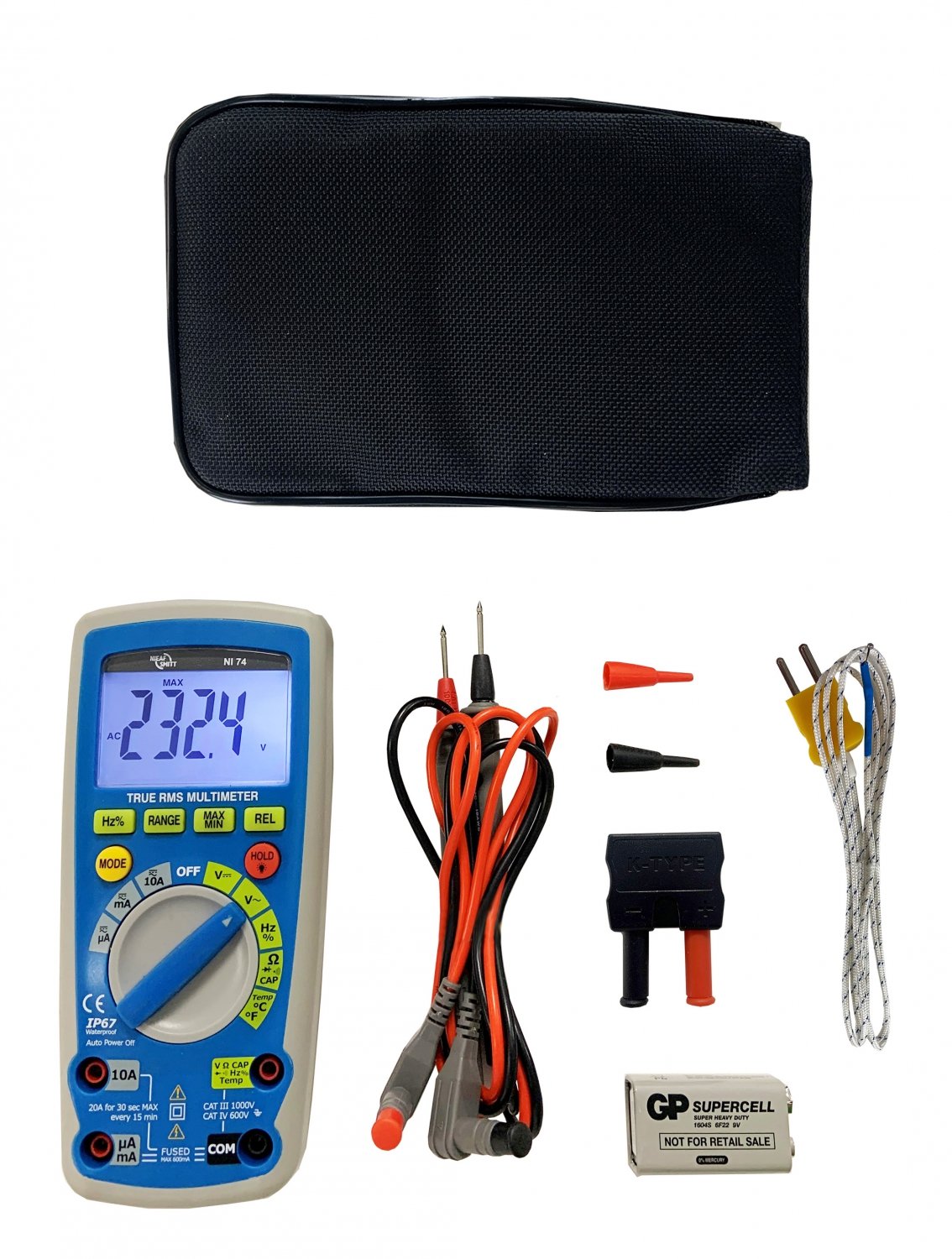

Including
- User manual
- Test leads
- Type K thermocouple
- Battery
Specifcations
| Function | Range | Accuracy |
| Voltage | 1000 VAC 1000 VDC |
± 0.8 % + 4d ± 0.1 % + 2d |
| Current | 10 AAC 10 ADC |
± 0.8 % + 3d ± 1.0 % + 3d |
| Resistance | 60 MΩ | ± 0.5 % + 2d |
| Frequency | 10 MHz | ± 1.2 % + 3d |
| Capacity | 4000uF | ± 3.0 % + 5d |
| Temperature | 760ºC | ± 3.0 % + 5d |
| General | ||
| Protection | IP 67 | |
| Display resolution | 2000d | |
| Overvoltage category | CAT III 1000 V & CAT IV 600 V | |
| Standard | EN 61010-1 | |
| Supply | 1x 9 V battery | |
| Dimensions | 170 x 79 x 50 mm | |
| Weight | ± 342 g (incl. battery) | |
| Including | Test leads, type K thermo couple, bag, battery, manual | |
