NI 64 Compact Digital Multimeter

Description

Compact digital multimeter

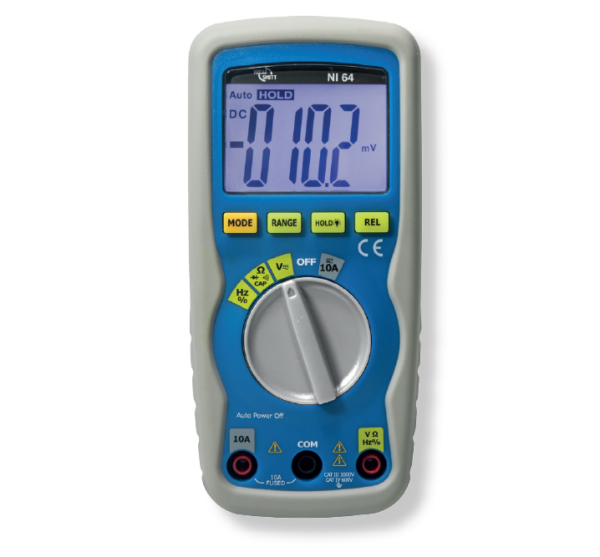

The NI 64 digital multimeter is a user friendly, compact multimeter with backlight. The multimeter is easy to use by the automatic range selection. The NI 64 is able to measure AC/DC voltage, current up to 10 AAC/DC, resistance, capacity, continuity and has a diode test.

Features

  • AC/DC voltage up to 600 V
  • AC/DC current up to 10 A
  • Resistance, capacity and frequency measurement
  • Continuity – /diode test
  • Duty cycle
  • LCD with backlight

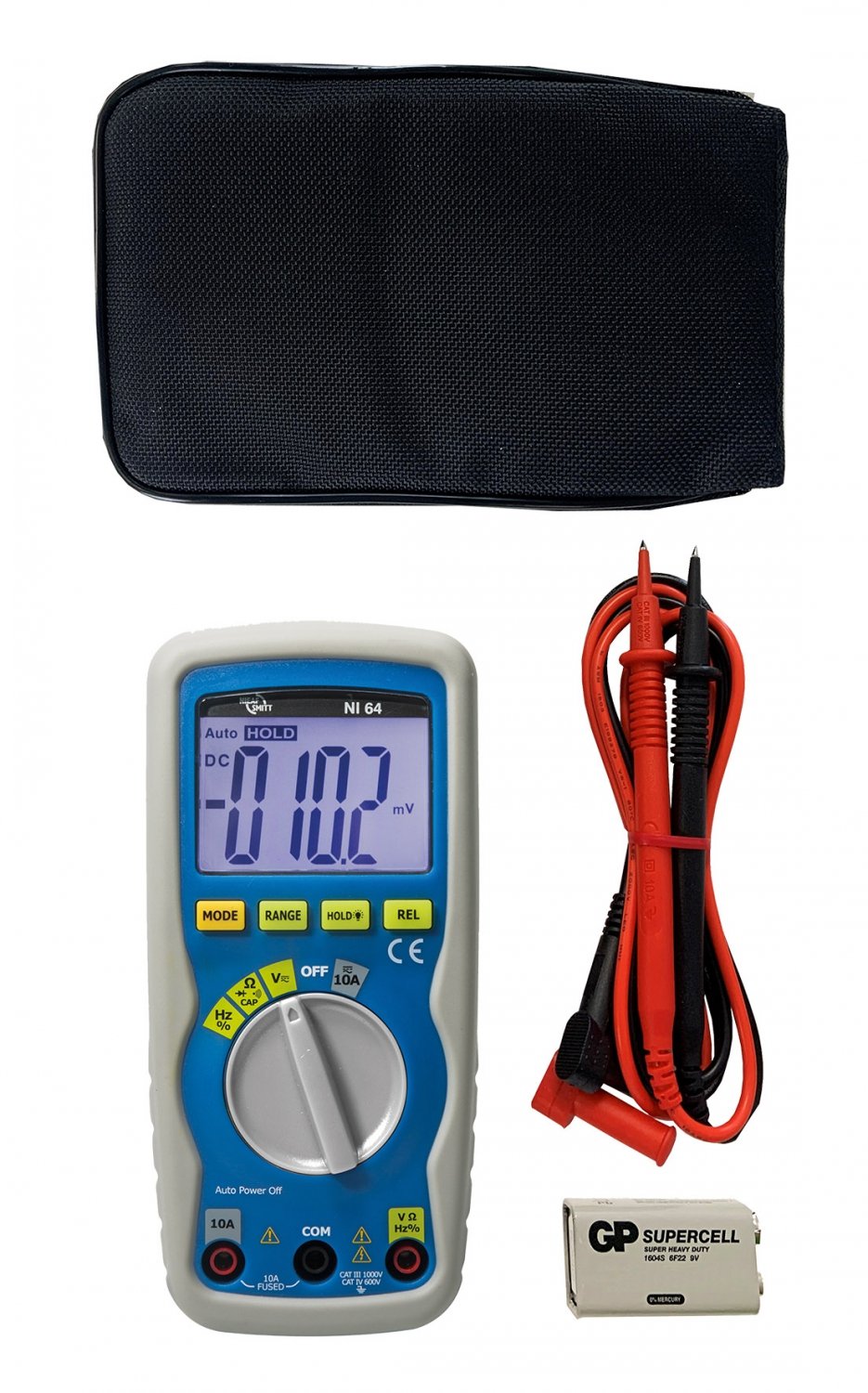

Including

  • User manual
  • Test leads
  • Bag
  • Battery

Specifications

Function Maximum range Accuracy
Voltage 600 VAC
600 VDC
± 1.5 % + 3d
± 1.2 % + 2d
Current 10 AAC
10 ADC
± 3.0 % + 5d
± 2.5 % + 5d
Resistance 60 MΩ ± 1.2 % + 2d
Frequency 10 MHz ± 1.2 % + 3d
Capacity 100uF ± 3.0 % + 5d
General
Display resolution 4000d
Overvoltage category CAT III 1000 V / CAT IV 600 V
Standard EN 61010-1
Supply 1x 9 V battery
Dimensions 150 x 70 x 48 mm
Weight ± 255 g (incl. battery)
Including Test leads, bag, batteries, manual
