Description

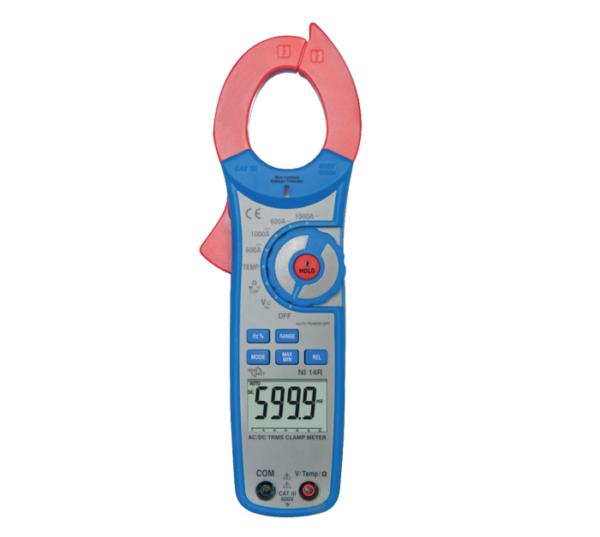

The complete and versatile current clamp NI 14R is an elegant and ergonomic shaped instrument.
This clamp is suitable for measuring AC/DC current (up to 1000 A), voltage, resistance capacity frequency and temperature. The measured values are displayed clearly on the LCD display, including backlight and bargraph.
Characteristics
- True RMS
- AC/DC voltage
- AC/DC current
- Non contact voltage detection
- Resistance, capacity, frequency
- Continuity
- Temperature
- Min-max hold
- Display hold
- LCD backlight
Specifications
| Functions | Max. range | Accuracy |
| Voltage | 600 VAC 600 VDC |
+ 1.5 % + 2d + 0.1 % + 1d |
| Current | 1000 AAC 1000 ADC |
+ 2.5 % + 4d + 2.0 % + 5d |
| Frequency | 10 MHz | + 1.2 % + 2d |
| Resistance | 60 MΩ | + 3.0 % + 5d |
| Capacity | 4000 μF | + 2.5 % + 5d |
| Temperature | 760 °C | + 3.0 % + 3d |
| General | ||
| Max. conductor seize | 35 mm | |
| Max. jaw opening | 40 mm | |
| Display resolution | 6000d | |
| Overvoltage category | CAT III 600 V | |
| Standard | EN 61010-1 | |
| Supply | 1x 9 V battery | |
| Dimensions | 232 x 77 x 39 mm | |
| Weight | 271 g (incl. battery) | |

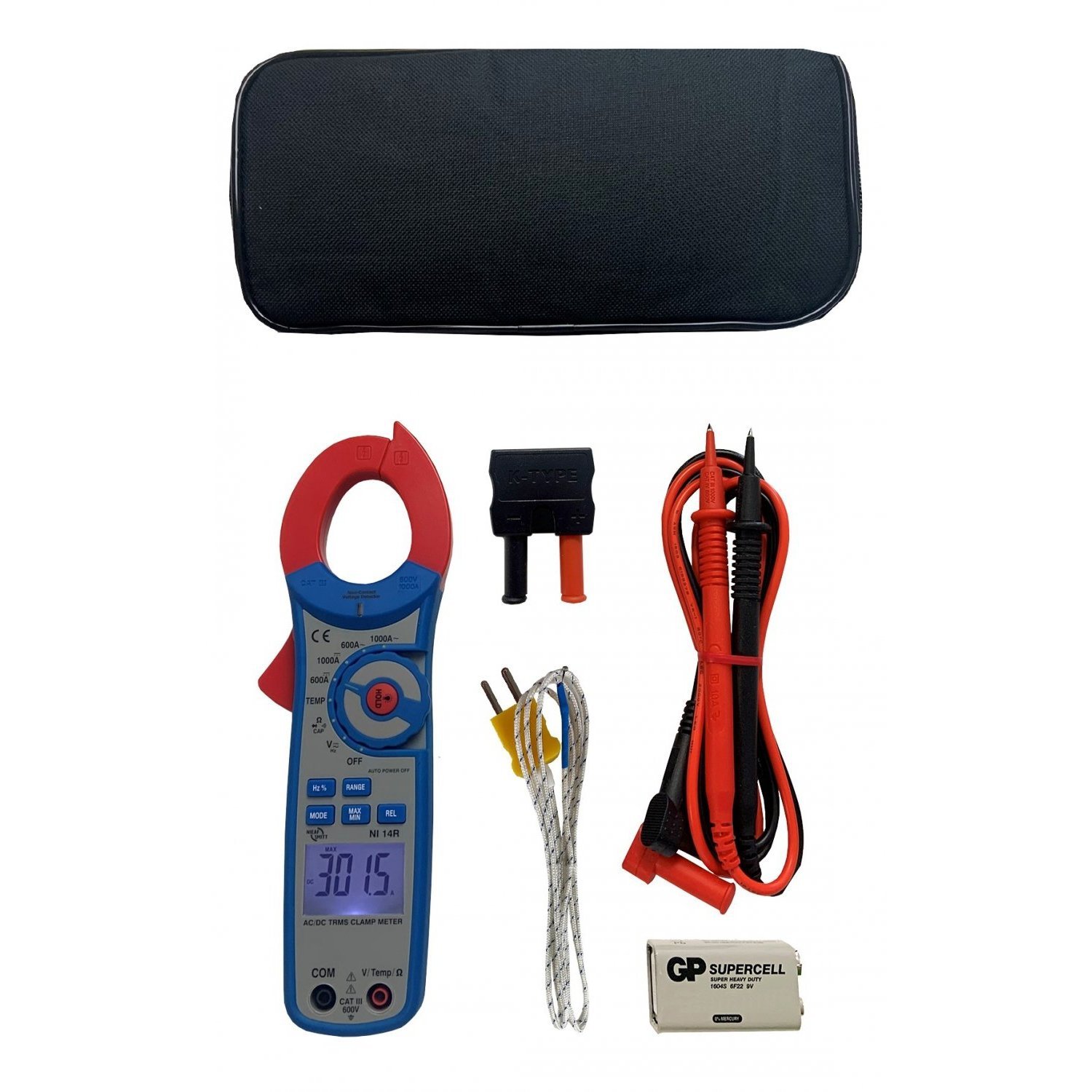

| Including | Test leads, type K thermo couple, bag, manual, battery | |
