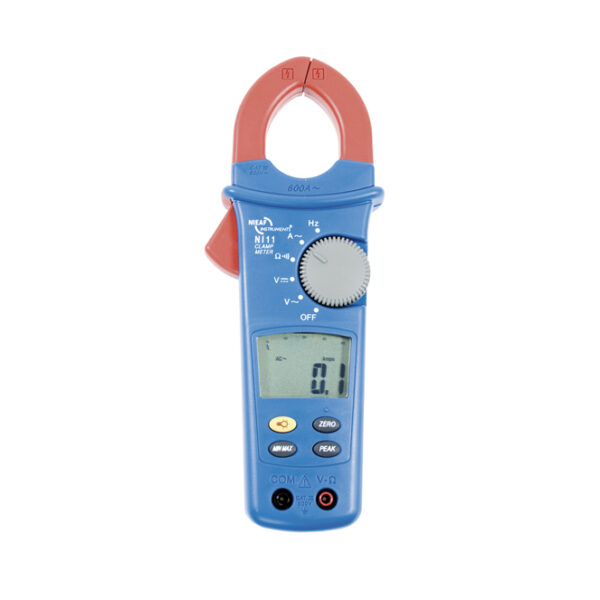

NI 11 Multimeter / clamp meter

Description

This product is obsolete.

Ergonomic current clamp

This elegant shaped, ergonomic current clamp is suitable for multiple measurements, such as AC currents, voltages, resistance and frequency. The integrated LCD-display is included with bargraph and backlight. This allows the user to use the clamp in dark applications and surroundings.

Features of the NI 11

  • Min – max hold
  • Auto ranging
  • Continuity test
  • Auto power off
  • Backlight

Including

  • Test leads
  • Bag
  • Batteries
  • Manual
Function Maximum range Accuracy
Voltage
600 VAC
600 VDC
+ 1.0 % + 5d
+ 0.7 % + 2d
Current 600 AAC + 1.9 % + 5d
Resistance 400 Ω + 1.0 % + 3d
Frequency 500 Hz + 0.1 % + 2d
Specifications
Max. conductor diameter 35 mm
Max. clamp opening 40 mm
Display resolution 4000d
Overcurent category CAT II 1000 V / CAT III 600 V
Standard EN 61010-1
Power supply 1x 9 V battery
Dimensions 220 x 70 x 50 mm
Weight ± 360 g (incl. battery)

Download:

datasheet-nieaf-smitt-ni-11

manual-nieaf-smitt-ni-11
