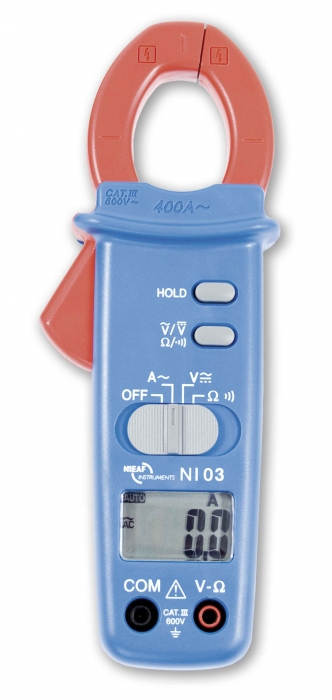

NI 03 Multimeter / current clamp

Description

This product is obsolete.

The NI 03 excells in functionality. With basic measurements as voltage, resistance and of course current makes it perfect for allround users.

The basic accuracy of 1 % makes it ideal for exact measurements.

Features

  • Current AC
  • Voltage AC/DC
  • Resistance
  • Continuity
  • CAT III 600 V
  • Display 2000d
  • Hold functie

Specifications

Functions Max. range Accuracy
Voltage 600 VAC
600 VDC
+ 1.5 % + 5d
+ 1.0 % + 2d
Current 600 AAC + 1.9 % + 5d
Resistance 20 MΩ + 1.9 % + 5d
General
Max. conductor seize 27 mm
Max. jaw opening 30 mm
Display resolution 2000d
Overvoltage category CAT III 600 V
Standard EN 61010-1
Supply 1x 9 V battery
Dimensions 180 x 56 x 32 mm
Weight 255 g (incl. battery)
Including Test leads, bag, manual, battery

Order number: 626005043

Download:

nieaf-ni03-manual-04-03-2010

specifications-ni-03
