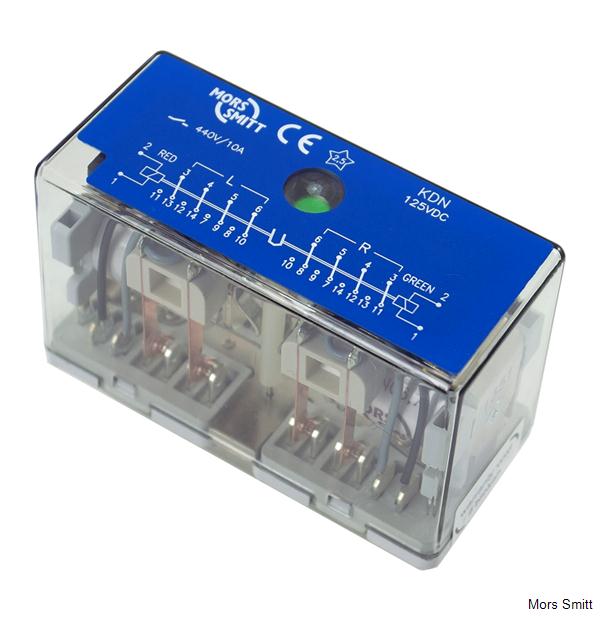

KDN series, latching relay (bistable), mechanical latch

Description

KDN relays, latching, 8 C/O, 10A

Heavy-duty latching/bistable relay for demanding applications. Equipped with mechanical latch and position indicator. Due to pulse activation less heat dissipation and energy consumption than instantaneous relays.
  • Plug in relay
  • Smitt-style pinning

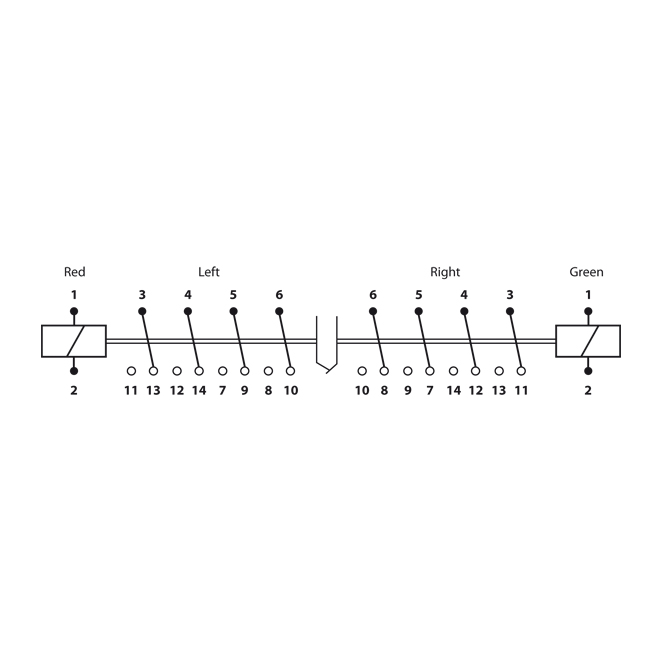

  • 8 C/O contacts
  • Rated load 1A /110V DC1 , 10A/230V AC1
  • Coil voltages 12…220 VDC, 24…380 VAC
  • AC&DC coil
  • Continuous coil energization permitted
  • Integrated ‘snap-lock’ retaining clip

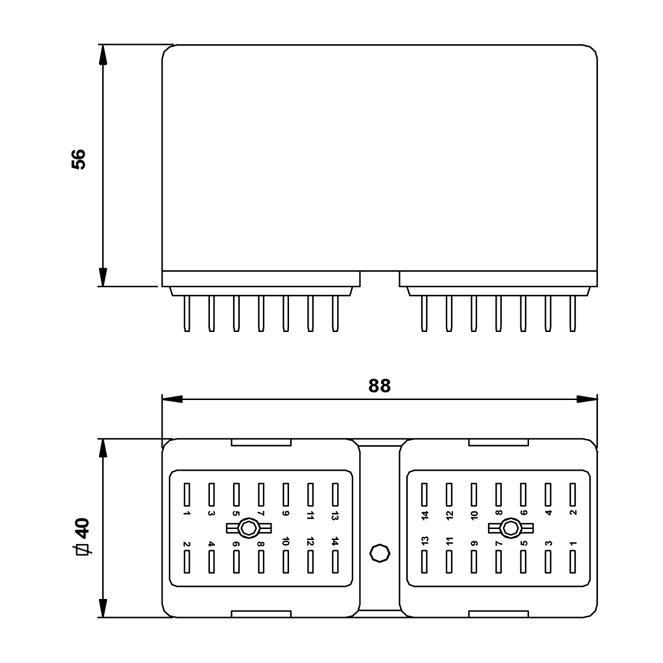

  • Dimensions 40 x 88 x 56 mm

Download:

datasheet-kdn-relays-ind-v2-2

drawings-kdn-relay.zip
