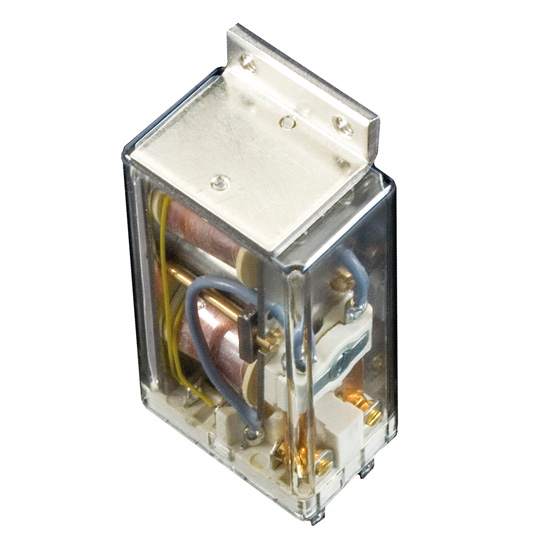

KCS series, latching relay (bistable), magnetic latch

Description

KCS relays, latching, 2 C/O, 6A

Heavy duty latching / bisable relay for demanding applications. Equipped with magnetic latch (permanent magnet). Due to pulse activation less heat dissipation and energy consumption than instantaneous relays.
  • Plug in relay
  • Contagion-style miniature pinning

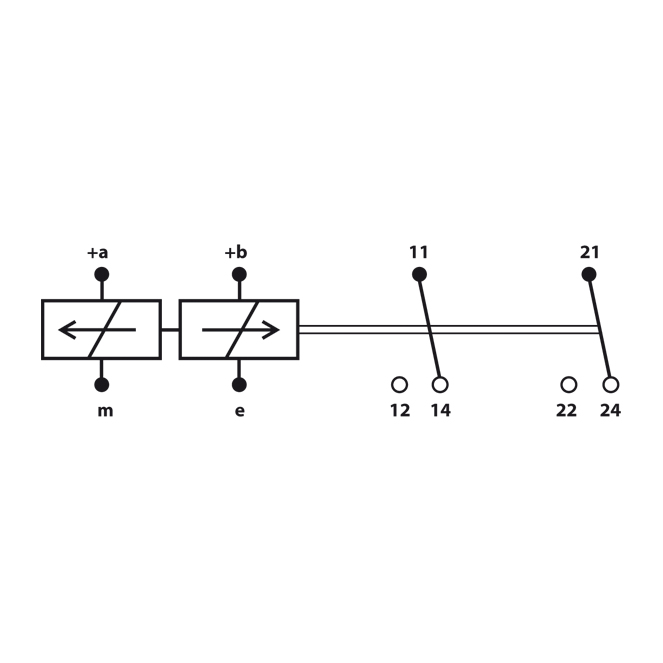

  • 2 C/O contacts
  • Coil voltages 12…110VDC
  • DC coil
  • Weld no transfer contacts

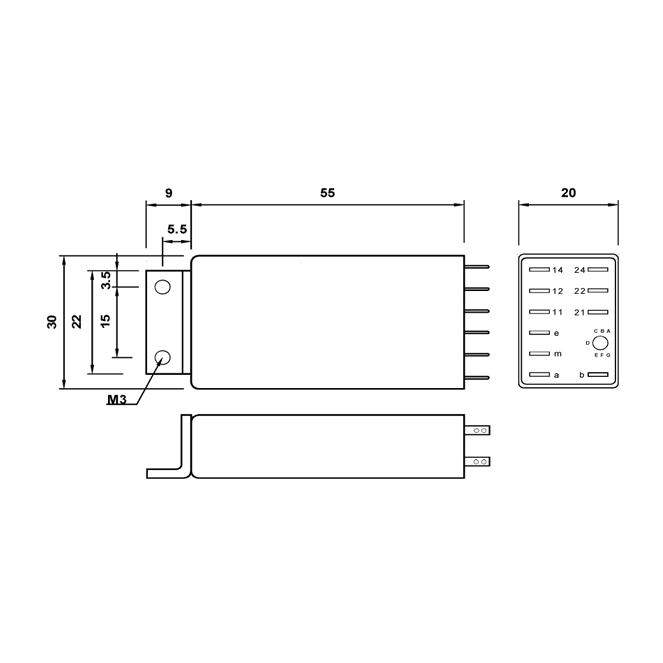

  • Dimensions 20 x 30 x 55 mm

This relay is obsolete from January 1, 2023.

Download:

datasheet-kcs-relays-obsolete-2023

drawings-kcs-relay.zip
