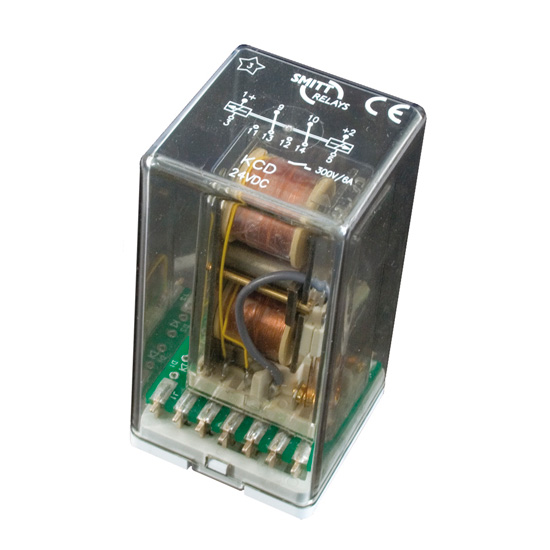

KCD series, latching relay (bistable), magnetic latch

Description

KCD relays, latching, 2 C/O, 6A

Heavy-duty latching/bistable relay for demanding applications. Equipped with a magnetic latch (permanent magnet). Due to pulse activation less heat dissipation and energy consumption than instantaneous relays.
  • Plug in relay
  • Smitt-style pinning

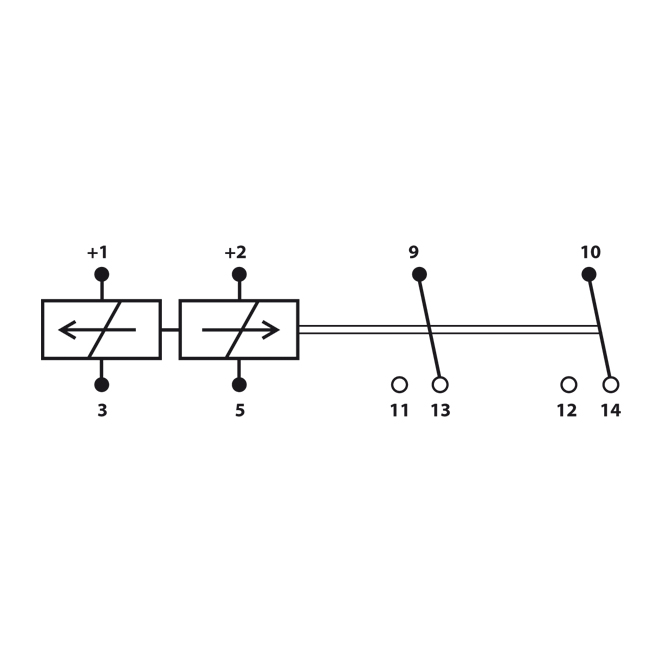

  • 2 C/O contacts
  • Coil voltages 12…220VDC or 12…220VAC
  • DC and AC coil
  • Weld no transfer contacts
  • Integrated ‘snap-lock’ retaining clip

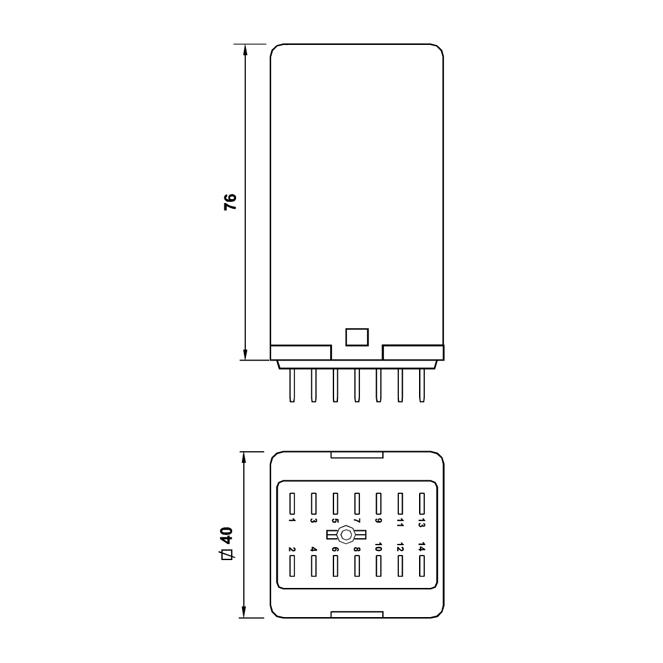

  • Dimensions 40 x 40 x 76 mm

This relay is obsolete from January 1, 2023.
