Description
The search for PV panels with higher yields has brought about new techniques that can produce higher inrush currents. The new EazyPV+ has been developed to keep up with these new technologies.
The EazyPV+ has the following features:
- Connect to the production of PV panels with higher efficiency
- Up to 300% better protection against high inrush currents.

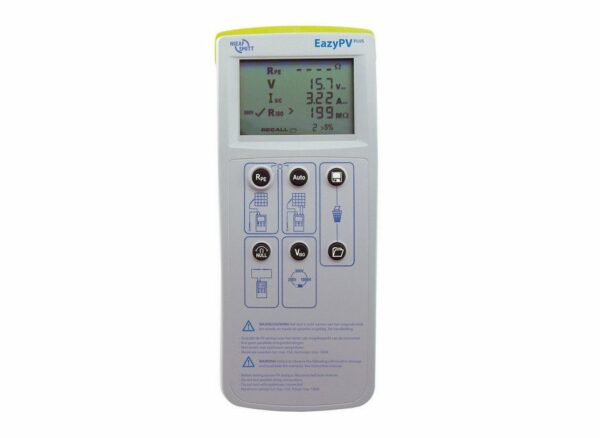

The compact PV-installationtester with digital display is the quickest on the market. The EazyPV+ combines all PV electrical test functions required to meet IEC 62446 into one safe, easy-to-use, hand-held device.
The addition of USB and wireless connectivity in combination with the IRM100, make the EazyPV+ the most versatile PV tester on the market.
Features
- Visual inspection: is the installation wired up correct? No damage to cables during installation?
- Insulation resistance measurement (Riso)
- Earth continuity measurement (Rpe)
- PV string short circuit current (Isc)
- PV string open circuit Voltage (Uoc)
- PV link software to download of measured values (included)
The following parameters can be wireless coupled with the IRM100 and
EazyPV+:
- Irradiance (W/m2)
- Panel temperature and outside temperature
Specifications
| Functions | Range |
| Earth continuity measurement | |
| Test current 2 Ω | > 200 mA |
| Range (EN 61557-4) | 0.05 Ω…199 Ω |
| Insulation resistance measurement | |
| Test voltage @ 1 mA | 250, 500, 1000 VDC |
| Display | 0.05 MΩ…199 MΩ |
| Open circuit voltage measurement (in PV-connections) | |
| Display | 0.0 VDC…1000 VDC |
| Short circuit curent (in PV-connections) | |
| Display | 0.00…15 A DC |
| Current (w/ AC/DC current clamp) | |
| Display | 0.1 A…40.0 A |
| Power | |
| Display | 0.05 W…40.0 kW |
| Rpe voltage measurement (4 mm connections) | |
| Spanning | 30 V…440 VDC 30 V…440 VAC 50/60 Hz |
| General | |
| Overvoltage category | CAT III 300 V |
| Standard | EN 61010-1, EN 62446 |
| Supply | 6x AA batteries |
| Dimensions | 260 x 100 x 55 mm |
| Weight | 0.8 kg |

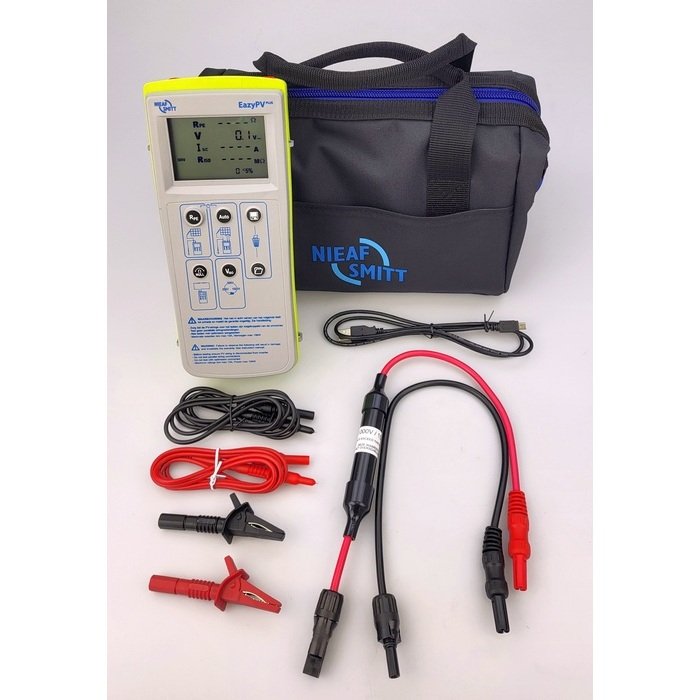

| Including | 2x MC4 connectors, 2x test lead + alligator clamp, bag, software (PVLink), s Conformity, Quickstart manual, batteries |
Order number: 626000874
