Description

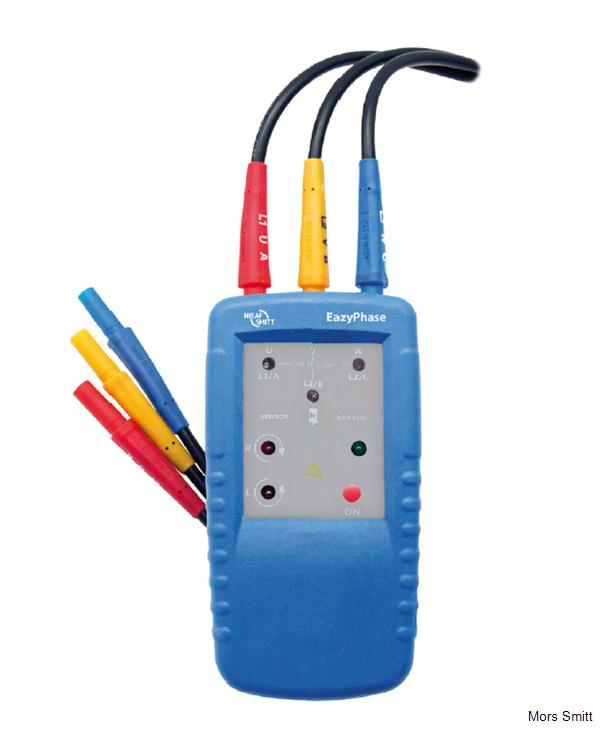

The EasyPhase is a 4-in-1 test tool for indication of phase rotation, indication of an open phase and field rotation indication of motors. The tester is ideal for installing conveyor lines, pump systems and interconnected drivers.
Features
- Determine rotary field direction
- Determine motor connection
- Indication of open phase
- Magnetic field detection
Specifications
| Functions | |
| Voltage | 120…600 VAC |
| Frequency | 2…400 Hz |
| Algemeen | |
| Power consumption | Approx. 3.5 mA at phase rotation Approx. 20 mA at motor rotation |
| Overvoltage category | CAT III 600 V |
| Standards | EN 61010-1 |
| Supply | 1x 9 V battery |
| Dimensions | 275 x 124 x 61 mm |
| Weight | 130 g |
| Including | Test leads, alligator clamps, bag, battery, manual |
Order number: 626005051
