Description

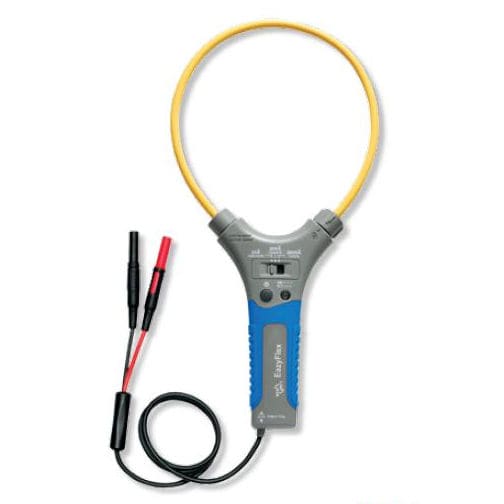

The EazyFlex is a flexible current clamp adapter with a measuring range up to 3000 A AC. Especially diffcult to reach locations can be safely measured by the flexible current sensor.
Features
-
Up to 3000 AAC
-
High accuracy
Including
-
Manual
-
Batteries
Specifications
|
Function
|
Range
|
Accuracy
|
|
|
Current
|
0.01…3000 AAC
|
+ 3.0 %
|
|
|
Output voltage
|
30 A
300 A
3000 A
|
100 mA AC voltage per 1 AAC
10 mA AC voltage per 1 AAC
1 mA AC voltage per 1 AAC |
|
|
Frequency
|
45…500 kHz
|
||
|
Specifications
|
|
|
Flex current sensor length
|
45 mm
|
|
Over voltage category
|
CAT IV 600 V
|
|
Standard
|
EN 61010-1
|
|
Dimensions
|
148 x 72 x 36 mm
|
|
Weight
|
± 200 g
|
