Description

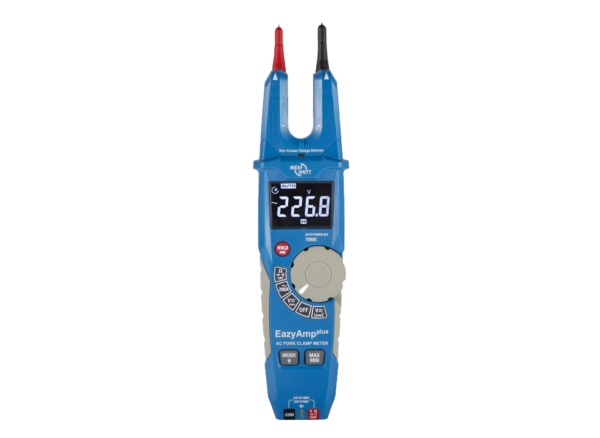

True RMS current clamp with open jaw
The EazyAmpPLUS is an user friendly current clamp with open jaw, to measure currents up to 200 A quick and safe.
The meter is equipped with a special screen and backlight to be able to measure well in less lit places. Also, the tester has a special low impedance stand to stray voltages to suppress.
The EazyAmpPLUS also measures AC/DC voltage, resistance, capacity, diode and continuity.
Features
- AC current up to 200 A
- AC/DC voltage up to 1000 V
- LowZ voltage measurement (low impedance)
- Resistance and capacity
- Continuity / diode test
- ‘Negative’ display and illuminated buttons
- Max-min mode
- Measuring point illumination
Specifications
| Functions | Maximum range | Accuracy |
| Voltage | 1000 VAC 1000 VDC |
± 1.2 % + 5d ± 0.9 % + 5d |
| Current | 200 AAC | ± 3.0 % + 5d |
| Resistance | 60 MΩ | ± 1.0 % + 4d |
| Capacity | 4000uF | ± 3.0 % + 5d |
| General | ||
| Display resolution | 6000d | |
| Max. jaw opening | 16 mm | |
| Supply | 2x 1.5 V batteries (AA) | |
| Overvoltage category | CAT III 1000 V / CAT IV 600 V | |
| Standard | EN 61010-1 (CE) | |
| Dimensions | 230 x 64 x 43 mm | |
| Weight | 230 g | |

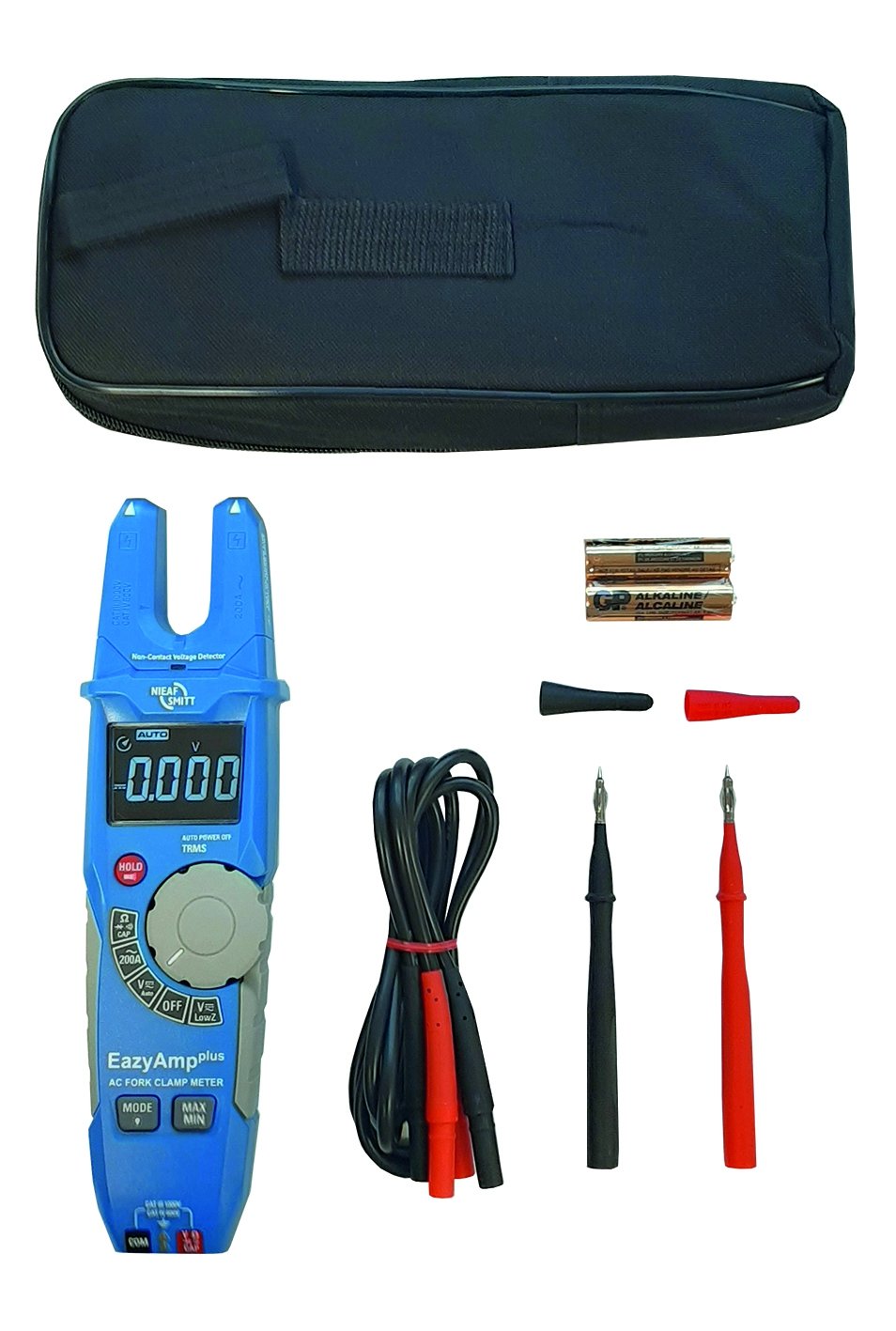

| Including | Test leads, test probes, bag, batteries, manual | |
Order number: 626000863
