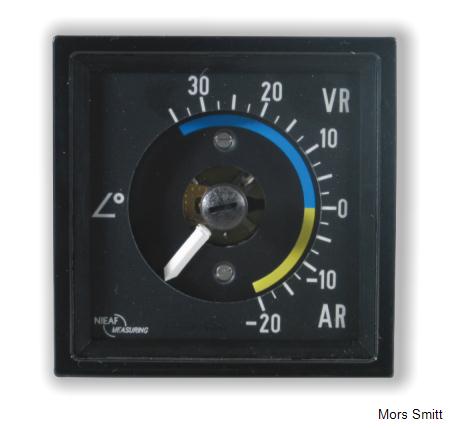

D3v…S/LED Moving coil indicator

Description

Indicators for navy applications, pointer rotation max. 240o
Models Dimensions Weight
D3v72S/LED 72 x 72 mm / 50 mm 400 g
D3v96S/LED 96 x 96 mm / 90 mm 750 g
D3v144S/LED 144 x 144 mm / 90 mm 900 g
Shockproof
30 G
STANAG 1008 (NATO)
Inputs
DC Current 1 mA…10 A
DC Voltage 60 mV…500 V
AC Current 1 mA…10 mA
AC Voltage 10 V…500 V
Protection class
IP54



Accuracy
Linear pointer deflection 240o
Scale options
  • White scale with black printing
  • Black scale with white printing
  • White scale with multi colour printing
  • Black scale with multi colour printing

Other scales on request

Extra options
  • Coloured markings
