Description

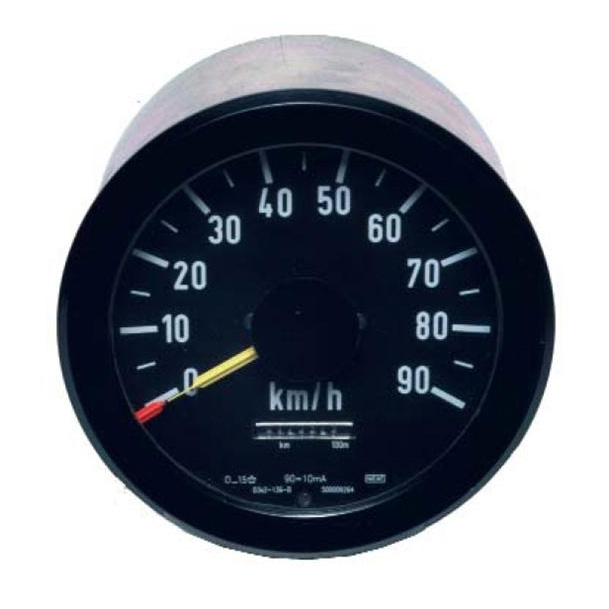

Round panelmeter for railway applications, single pointer.
General specifications
Accuracy
1.5 % F.S.D. addirional 0.75 % / 10 °C
Operating temperature
-25 °C…+70 °C
Humidity
at 40 °C max. 95 %
Protection
IP54
rear IP50 (terminals IP00)
Vibrations
5…150 Hz, 2 g random 3 x 5 h acc. EN 61373 (50155)
Shock
acc. EN 61373
Test voltage
2 kV
Illumination
LEDS, any voltage between 24 and 110 VAC/VDC
Scale and pointer
Black scale, white pointer and figures
Terminals
Movement: M5, illumination: faston 6.3 x 0.8
Signal Leds: screw terminals
km counter : screw terminals
Glass
Low reflection
Panel mounting
with two brackets, panelcutout ∅130+1
International Standards
IEC 571
EN 60051
EN 50155
EN 50121
EN 61373
Movement signal
0…20 mA
4…20 mA
0…2.5 mA
0…10 V
other inputs on request zero left or middle
Codes
xL : Signal Led’s (on request) x = number of leds
W : White scale
T : reduced size 89 to 61
Options
White scale with black pointer and printing
Pointers yellow, white or red
Brand label on scale
Red-line marking(s) on the scale
Built in km-counter (not resetable)
Reduced size from 89 mm to 61 mm (on request)
