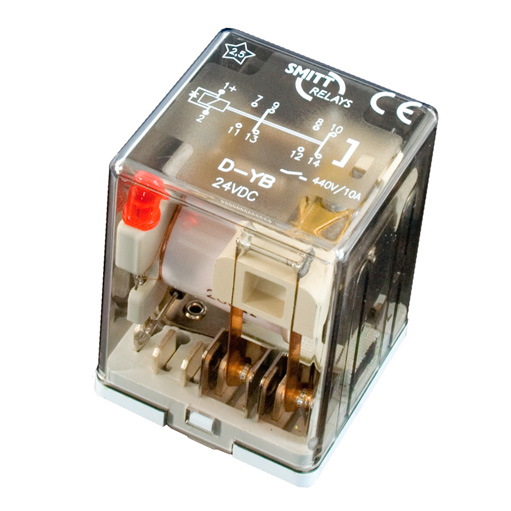

D-YB series, high DC breaking capacity (8A) relays

Description

D-YB relays, 2 DM-DB contacts, up to 8A/110V DC1

Heavy duty relays for demanding applications. Integrated magnetic arc blow-out function and double make – double break contacts for higher DC breaking capacity.

  • Plug in relay
  • Smitt-style pinning

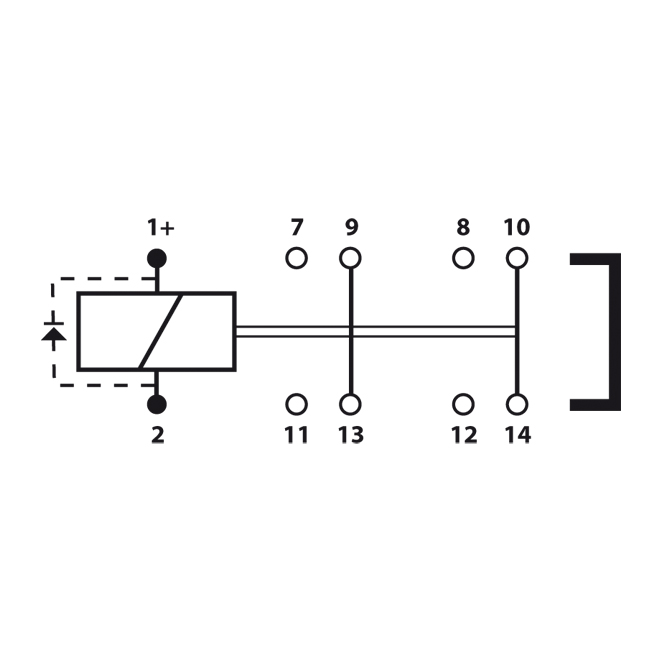

  • 2 double make double break contacts
  • Rated load 8A /110V DC1 , 10A/230V AC1
  • Coil voltages 12…220VDC, 12…380VAC
  • AC&DC coil, DC with standard back EMF diode
  • LED indicator
  • Integrated ‘snap-lock’ retaining clip
  • Magnetic arc blow-out (option B)
  • Double make/double break (option Y)
  • Dimensions 40 x 40 x 53 mm
