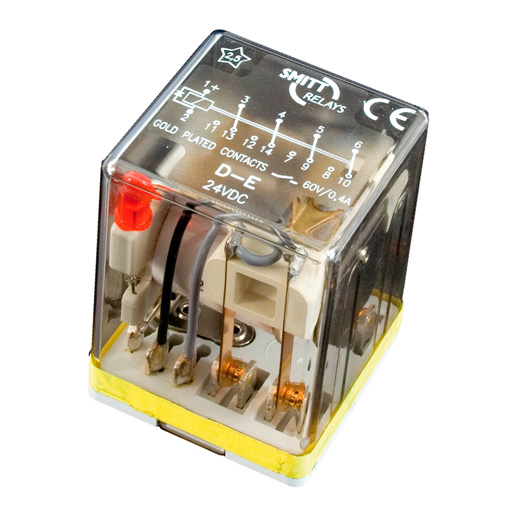

D-E series, low current switching relay

Description

D relays, 4 C/O, 10A

Heavy duty relays for demanding applications, suitable for low current switching, equipped with gold plated contacts.

  • Plug-in power relay
  • Smitt-style pinning

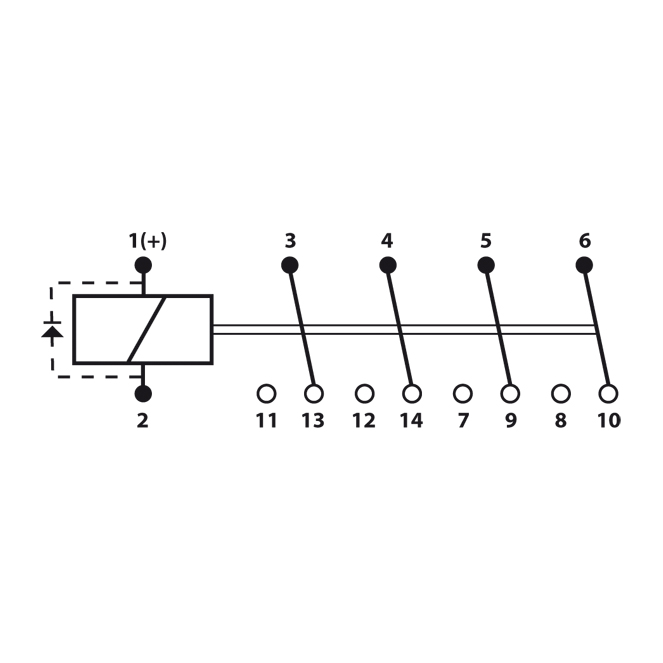

  • 4 C/O contacts, gold plated
  • Rated load 1A /110V DC1 , 10A/230V AC1
  • Coil voltages 12…350VDC, 12…440VAC
  • AC&DC coil (DC coil standard with back EMF diode)
  • LED indicator
  • Integrated ‘snap-lock’ retaining clip

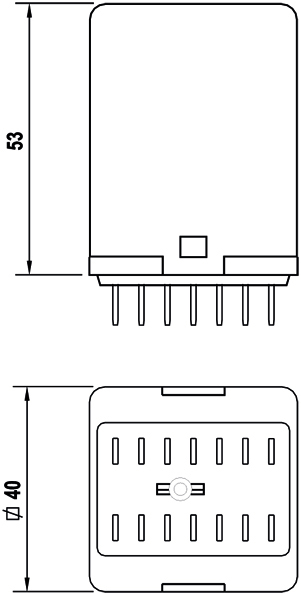

  • Dimensions 40 x 40 x 53 mm
