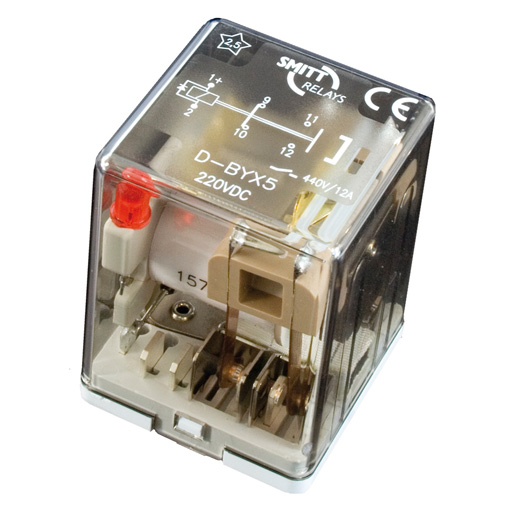

D-BYX5 series, high DC breaking capacity (12A) relays

Description

D-BYX5 relays, 1 DM-DB, up to 12A/110V DC1

Heavy duty relays for demanding applications. Integrated magnetic arc blow-out function and contact gap 4mm for higher DC breaking capacity.

  • Plug in relay
  • Smitt-style pinning

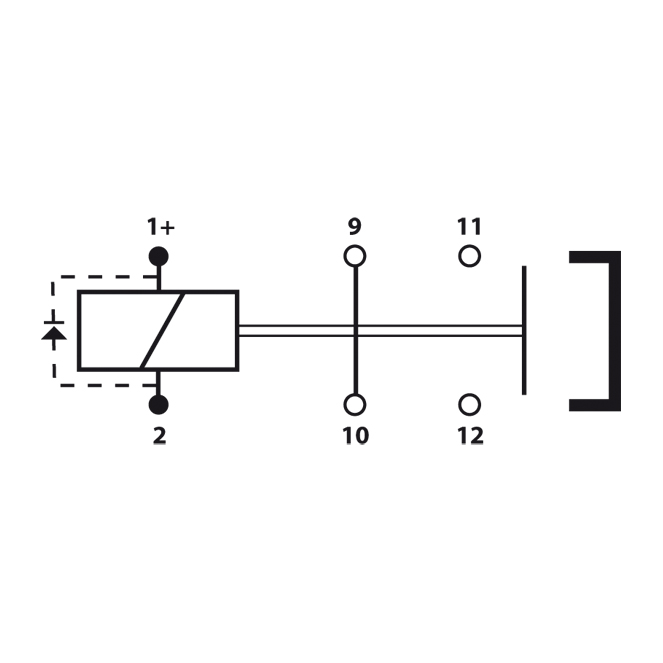

  • 1 double make double break contact (option Y, standard)
  • Rated load 12A /110V DC1 , 10A/230V AC1
  • Coil voltages 12…220 VDC, 12…380 VAC
  • AC&DC coil, DC with standard back EMF diode

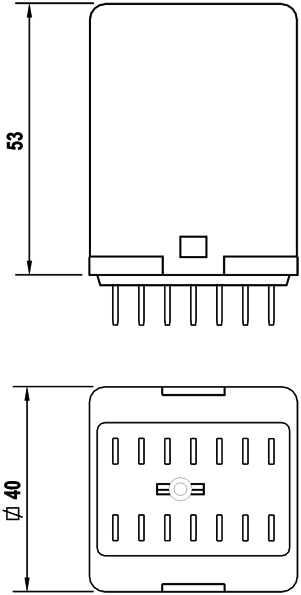

  • Dimensions 40 x 40 x 53 mm
  • LED indicator (option L, standard)
  • Integrated ‘snap-lock’ retaining clip
  • Magnetic arc blow-out (option B,standard)
  • Contact gap 4 mm. (option X5, standard)

Download:

datasheet-option-x5-for-d-relays-v1-0

d-byx5-general-specifications

drawings-d-relay-industry.zip
