Description

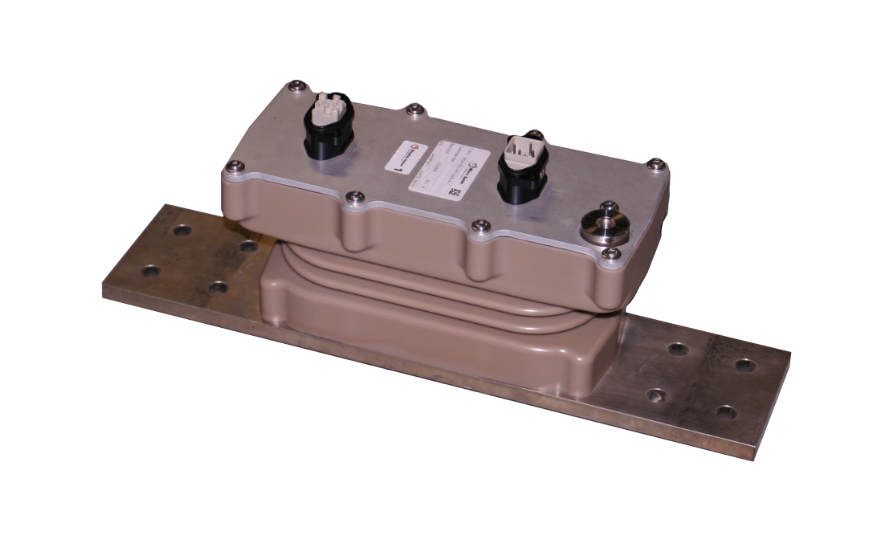

The Mors Smitt CatEnergy DC sensor provide an all in one proven, reliable, accurate and cost-effective solution for rolling stock. Based on its full energy measurement function integration with voltage and current measurement and energy calculation according to EN 50463, the CatEnergy DC is the perfect compact solution for energy measurement implementation on existing or new build rolling stock.
Functions
- DC Voltage Measurement Function (VMF) according to EN 50463
- DC Current Measurement Function (CMF) according to EN 50463
- DC Energy Calculation Function (ECF) according to EN 50463
Catenary voltage
- From 600Vdc to 3000Vdc according to EN 50163
Nominal current
- From 900A to 4000A dc according to EN50463
- Accurate measurement from 50A dc (1% error)
Accuracy
- Class 0,5R for DC Voltage Measurement Function according to EN 50463
- Class 1R for DC Current Measurement Function according to EN 50463
- Class 0,2R for DC Energy Calculation Function according to EN 50463
Insulation
- OV4-PD4 according to EN50124-2
- Electrical shock up to 200kV
- Dielectric 2120Vdc, 1min
- Dielectric 25kV, 50Hz, 1min for AC catenary fall withstand in case on roof installation
Digital output
- Ethernet 10/100Mb
- RS 485
IP rate
- IP66 according to EN 60529
Fire and Smoke
- R22, HL3 according to EN 45545-2
Operating Temperature
- -40°C to +70°C, class TX according to EN 50155
Power supply
- Full range from 24 to 110Vdc
Total weight
- From 8 to 12,5kG depending on the current range measurement
Dimensions
- 450 * 150 * 100 (length * height * width)
Installation
- Rooftop mounting
- Cabinet mounting
