Q Style / BR930 Signalling Relays

Mors Smitt has expanded its wide range of relay products with the Q-style BR930 signalling relays manufactured by Mors Smitt UK Ltd. in Burton on Trent, UK. We have been manufacturing these relays since the 1960’s and have full Network Rail acceptance certification (formerly British Rail)
Successfully supplied throughout the world and originally known as Tyer, then as Field & Grant, STS Rail and now as Mors Smitt UK. There are over 150 relay designs currently being manufactured meeting the requirements of many railway operators including customer specific designs when needed.

Key features

  • Non-weld silver and silver impregnated carbon contact tips
  • Automated vision system and operator inspection
  • Comprehensive automated end of line testing
  • End of line test results available on request
  • Certificate of Conformity supplied with each order
  • Recertification and repair services available
  • Bespoke design services

Download:

Q-Style BR930 Signalling Relays Brochure

Link:

Q Style/BR930 Relay Selection Guide

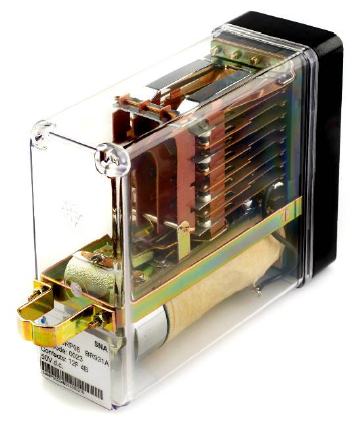

  • QBA1 – AC immune DC biased neutral line relay

     The relays covered by this data sheet (see downloads) are for use in line circuits where operation of the relay is required to be dependant on the polarity of the current in the coil. They are also suitable when alternating current at industrial frequency may be present in the circuit. Mors Smitt Relays Modular plug in design. Non weld contacts. Silver and carbon impregnated with silver contact tips. Proven reliability.…

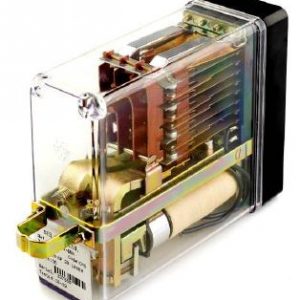

  • QBBA1 – Twin AC immune DC biased neutral line relay

     The twin relays covered by this data sheet (see downloads) are for use in line circuits where operation of the relay is required to be dependant on the polarity of the current in the coil. They are also suitable when alternating current at industrial frequency may be present in the circuit. Mors Smitt Relays Modular plug in design Non weld contacts Silver and carbon impregnated with silver contact tips Proven reliability…

  • QBCA1 – AC immune DC biased contactor relay

     The relays covered by this data sheet (see downloads) are for use in line circuits where the relay is required to control the motor circuit of a point machine or other similar heavy duty applications and are suitable for use where undesired alternating current at industrial frequency may be present in the circuit. Mors Smitt Relays Modular plug in design Heavy duty front contacts Non weld back contacts Silver and…

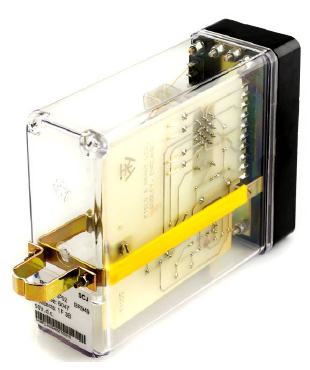

  • QCJ – DC operated non-safety time delay relay

     The relay units covered by this data sheet (see downloads) are used in a point control circuit to disconnect the contactor coil, if the latter is not otherwise de-energised, within a predetermined time. The time delay provided is sufficient to allow the point machine to complete its normal operation. This is classified as a non-safety relay. Mors Smitt Relays Modular plug in design Non weld contacts Silver and carbon impregnated…

  • QDF3 – LED flasher unit

     The relay covered by this data sheet (see downloads) is a solid state DC diagram flasher unit for flashing the negative line of LED diagrams. Mors Smitt Relays Modular plug in design Proven reliability Low life cycle cost

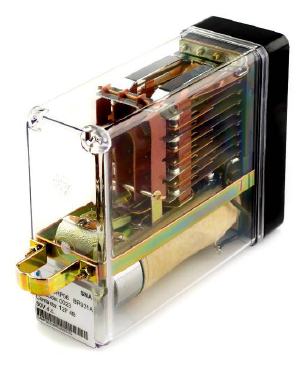

  • QEC1 – DC lamp proving relay

     The relays covered by this data sheet (see downloads) are designed as lamp proving relays where the lamp is energised by a battery or rectified AC supply. Mors Smitt Relays Modular plug in design Non weld contacts Silver and carbon impregnated with silver contact tips Proven reliability Low life cycle cost

  • QECF1 – DC lamp proving relay – flashing

     The relays covered by this data sheet (see downloads) are designed as lamp proving relays for flashing lamps with a DC supply. Typically BR945 relays are used for flashing road signals at level crossings. Mors Smitt Relays Modular plug in design Non weld contacts Silver and carbon impregnated with silver contact tips Proven reliability Low life cycle cost

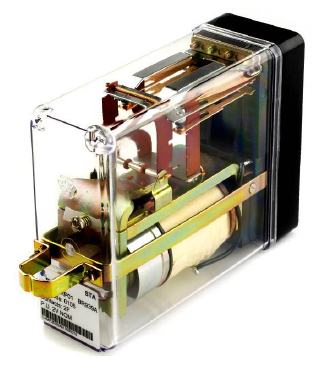

  • QECR2 – DC lamp proving relays

     The relays covered by this data sheet (see downloads) are designed as lamp proving relays for 110V DC 12 W LED signalling lamps. These relays are based on the BRB940A specification. Mors Smitt Relays Modular plug in design Non weld contacts Silver and carbon impregnated with silver contact tips Proven reliability Low life cycle cost

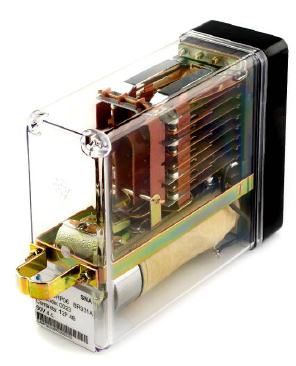

  • QECX1 – AC lamp proving relay

     The relays covered by this data sheet (see downloads) are designed as lamp proving relays for AC circuits where the relay is connected in series with the lamp. Mors Smitt Relays: Modular plug in design. Non weld contacts. Silver and carbon impregnated with silver contact tips. Proven reliability. Low life cycle cost.

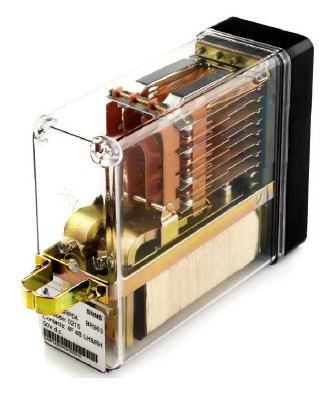

  • QEECF1 – Twin DC lamp proving relay

     Twin relays covered by this data sheet (see downloads) are for lamp proving of flashing DC lamps. Mors Smitt Relays Modular plug in design Non weld contacts Silver and carbon impregnated with silver contact tips Proven reliability Low life cycle cost

  • QL1 – DC magnetically latched neutral line relay

     The relays covered by this data sheet (see downloads) are for use where a self latching relay with a separate release winding is required. Mors Smitt Relays Modular plug in design Non weld contacts Silver and carbon impregnated with silver contact tips Proven reliability Low life cycle cost

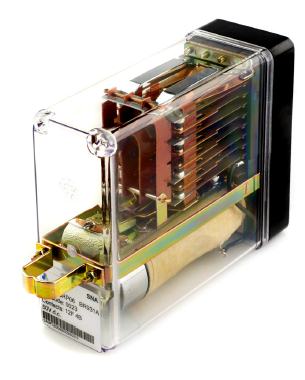

  • QN1 – DC neutral line relay

     The relays covered by this data sheet (see downloads) are for general railway signalling purposes. Mors Smitt Relays Modular plug in design Non weld contacts Silver and carbon impregnated with silver contact tips Proven reliability Low life cycle cost

  • QNA1 – A.C. Immune D.C. neutral line relay

     The relays covered by this data sheet (see downloads tab) are for use in line circuits where alternating current at industrial frequency may be present in the circuit. Mors Smitt Relays Modular plug in design Non weld contacts Silver and carbon impregnated with silver contact tips Proven reliability Low life cycle cost

  • QND2 – Double wound DC neutral line relay

     The double wound relays covered by this data sheet (see downloads) are for general railway signalling purposes where operation from either of two separate supplies is required. Mors Smitt Relays Modular plug in design Non weld contacts Silver and carbon impregnated with silver contact tips Proven reliability Low life cycle cost

  • QNDE – DC neutral line relays with medium duty back contacts

     Relays covered by this data sheet (see downloads) are for general railway signalling purposes replacing relays to BRB930 where greater current carrying capacity is required for the back contacts e.g. controlling flashing lamps at some barrier installations. Double winding is for where operation from either of two separate supplies is required. Mors Smitt Relays Modular plug in design Non weld front contacts Medium duty back contacts Silver and carbon impregnated…

  • QNE – DC neutral line relays with medium duty back contacts

     Relays covered by this data sheet (see downloads) are for general railway signalling purposes replacing relays to BRB930 where greater current carrying capacity is required for the back contacts e.g. controlling flashing lamps at some barrier installations. Mors Smitt Relays Modular plug in design Non weld front contacts Medium duty back contacts Silver and carbon impregnated with silver front contact tips Proven reliability Low life cycle cost
