Obsolete Railway Relay Sockets

•

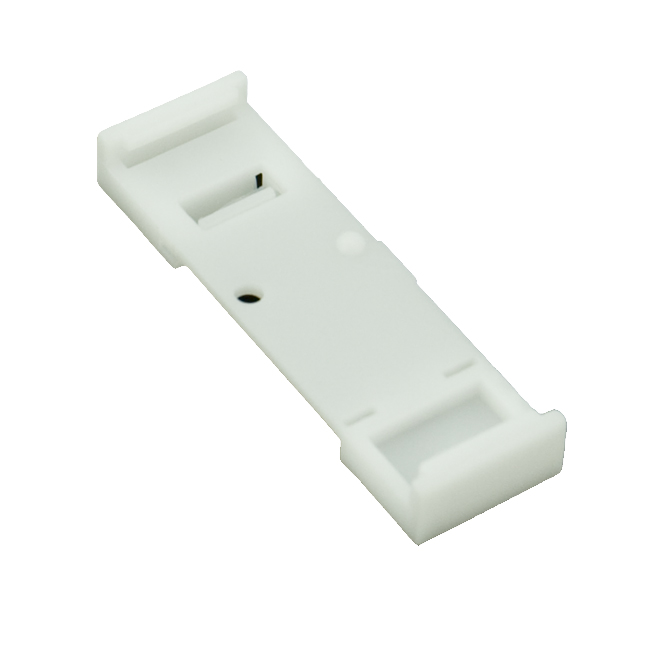

  A109 rail clip

  A109 rail clip
•

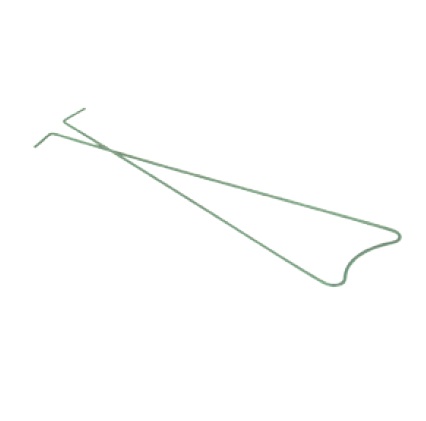

  A110 Retaining clip

  A110 Retaining clip
•

  V10 socket – Screw terminal, wall mount

  The V10 is a surface / wall mount relay socket. The V10 socket has one screw terminal per relay contact suitable for two wires up to 2.5 mm2, so looping/daisy chaining can be done on the socket and no external connector or terminal is needed. Optional 35 mm rail mount with A109 rail clip. To prevent fault relay placement the socket can be equipped with mechanical keying to accept only…
•

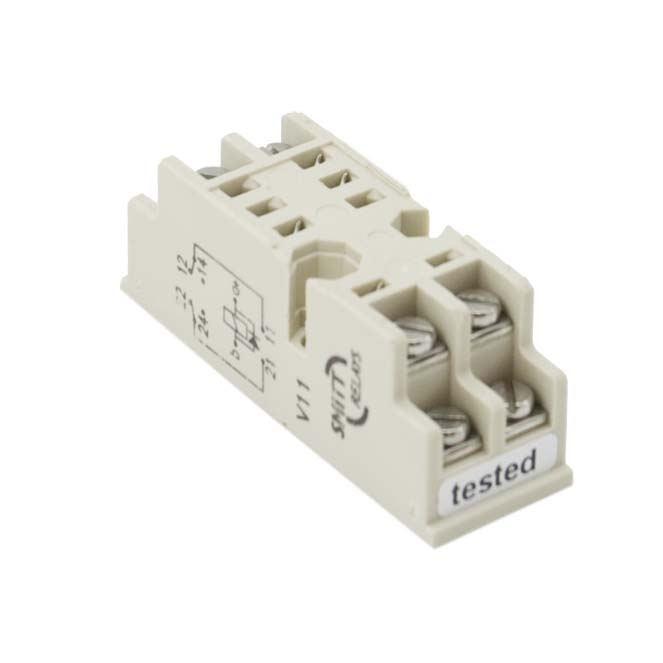

  V11 socket – Screw terminal, wall mount, protection diode

  The V11 is a surface / wall mount relay socket. The V11 socket has one screw terminal per relay contact suitable for two wires up to 2.5 mm2, so looping/daisy chaining can be done on the socket and no external connector or terminal is needed. Optional 35 mm rail mount with A109 rail clip. The V11 has a back EMF protection diode included, to protect connected electronics against a voltage…
•

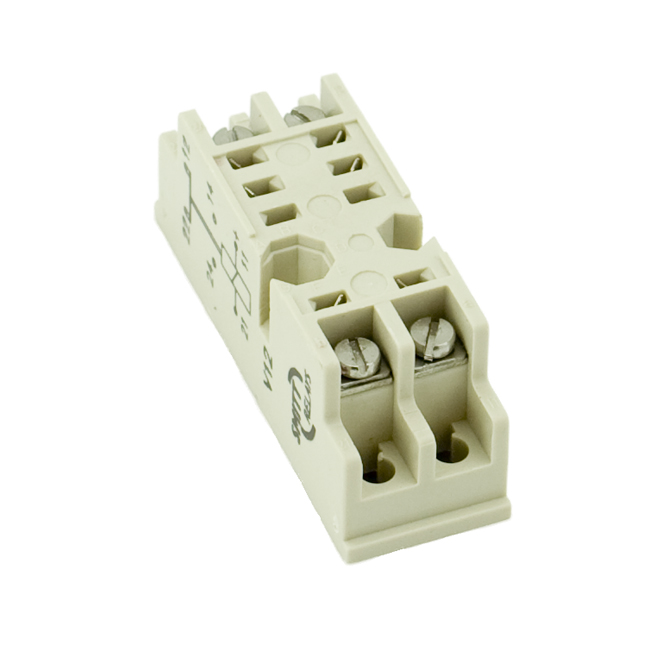

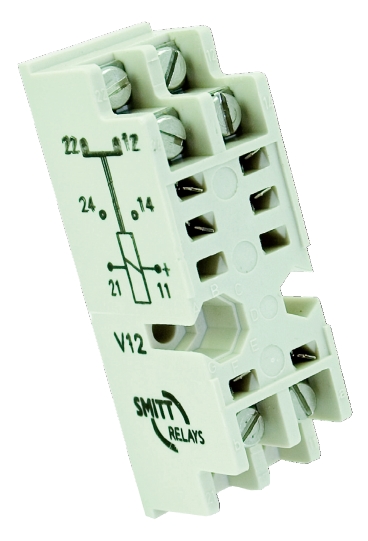

  V12 socket – Screw terminal, wall mount, 4 kV insulation

  The V12 is a surface / wall mount relay socket. The V12 socket has one screw terminal per relay contact suitable for two wires up to 2.5 mm2, so looping/daisy chaining can be done on the socket and no external connector or terminal is needed. Optional 35 mm rail mount with A109 rail clip. The V12 has 4 kV insulation between relay coil and contacts. To prevent fault relay placement…
•

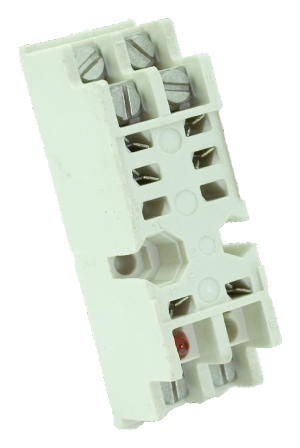

  V13 socket – Screw terminal, wall mount, diode and LED

  The V13 is a surface / wall mount relay socket. The V13 socket has one screw terminal per relay contact suitable for two wires up to 2.5 mm2, so looping/daisy chaining can be done on the socket and no external connector or terminal is needed. Optional 35 mm rail mount with A109 rail clip. The V13 has a back EMF protection diode included, to prevent a voltage surge to protect…
•

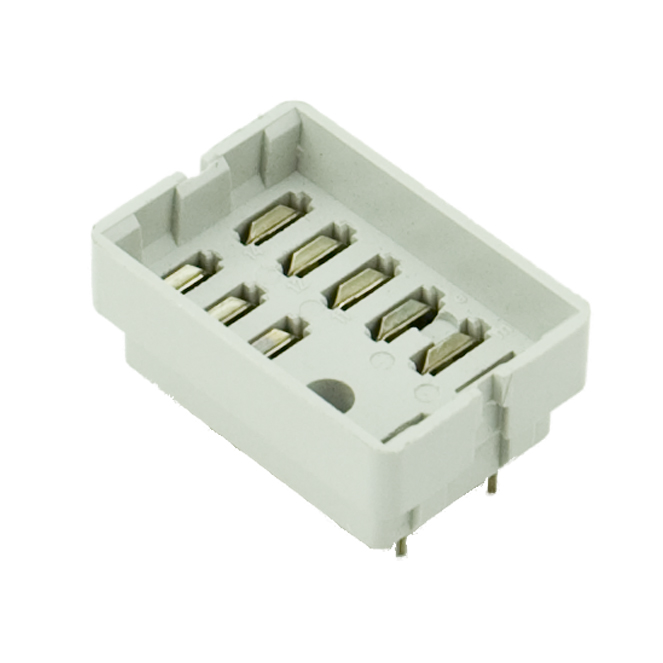

  V14 socket – PCB mount

  The V14 is a relay socket for soldering on PCB. The relay will be plugged into the socket, the socket will be soldered on the PCB. There is only one way of connecting the relay to the socket to guarantee correct placement of the relay. Application The V14 relay socket is suitable for general railway applications with a space saving design. Installation and replacement of relays is made easy and…
•

  V15 socket – Screw terminal, wall mount, diode and LED

  The V15 is a surface / wall mount relay socket. The V15 socket has one screw terminal per relay contact suitable for two wires up to 2.5 mm2, so looping/daisy chaining can be done on the socket and no external connector or terminal is needed. Optional 35 mm rail mount with A109 rail clip. The V15 has a back EMF protection diode included, to prevent a voltage surge to protect…
•

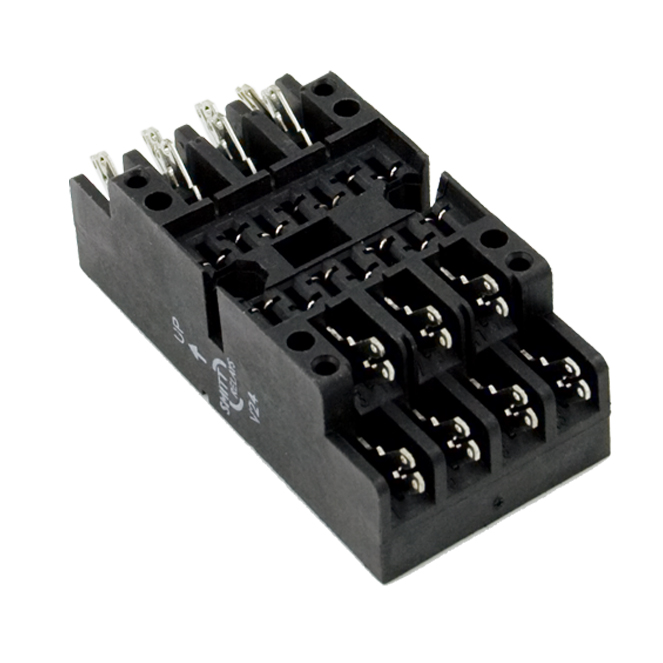

  V24 socket – Faston terminal, wall mount

  The V24 is a surface / wall mount relay socket. The V24 socket has one terminal per relay contact with tabs for one faston of 6.3 x 0.8 mm or two fastons of 2.8 x 0.8 mm. To prevent fault relay placement the socket can be equipped with mechanical keying to accept only designated identical keyed relays. Clear UP arrow for correct mounting. Application The V24 relay socket is suitable…
•

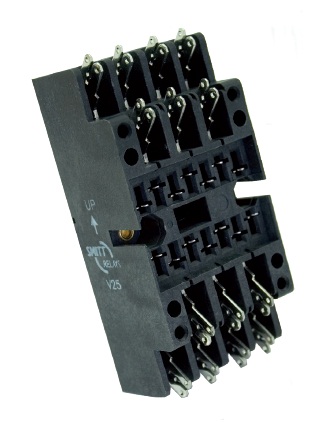

  V25 socket – Faston terminal, rail mount

  The V25 is a 35 mm rail mount relay socket. The V25 socket has one terminal per relay contact with tabs for one faston of 6.3 x 0.8 mm or two fastons of 2.8 x 0.8 mm. To prevent fault relay placement the socket can be equipped with mechanical keying to accept only designated identical keyed relays. Clear UP arrow for correct mounting. Application The V25 relay socket is suitable…
•

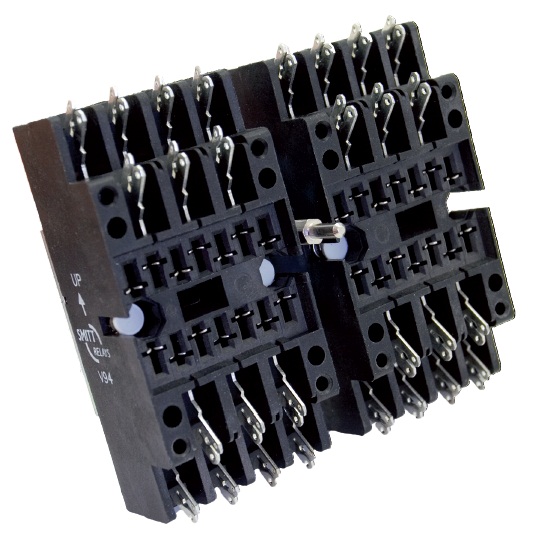

  V94 socket – Faston terminal, wall mount 8 pole

  The V94 is a surface / wall mount relay socket. The V94 socket has one terminal per relay contact with tabs for one faston of 6.3 x 0.8 mm or two fastons of 2.8 x 0.8 mm. To prevent fault relay placement the socket can be equipped with mechanical keying to accept only designated identical keyed relays. Clear UP arrow for correct mounting. Application The V94 relay socket is suitable…
•

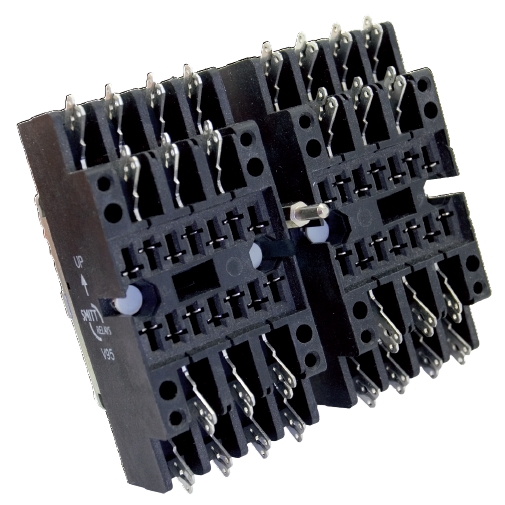

  V95 socket – Faston terminal, rail mount, 8 pole

  The V95 is a 35 mm rail mount relay socket. The V95 socket has one terminal per relay contact with tabs for one faston of 6.3 x 0.8 mm or two fastons of 2.8 x 0.8 mm. To prevent fault relay placement the socket can be equipped with mechanical keying to accept only designated identical keyed relays. Clear UP arrow for correct mounting. Application The V95 relay socket is suitable…
