Panel indicators

The signalling / infrastructure sector is served with systems that ensure factors as full signal integrity, automatic train protection, energy distribution and control. For many years, our Panel Indicators have been a reliable component in different systems.



Due to decline in demand and increasing production and distribution costs, we will discontinue this product line as of December 31, 2025.



We will continue to accept orders until December 31, 2024.



Please note that this decision does not impact our other products for industry and railway, which will continue to be available to you as usual. We apologise for any inconvenience this may cause. Should you have any questions or require further information, please do not hesitate to contact us.

Mors Smitt offers a wide range of panel indicators based on the ultra reliable and economic moving-coil technology. Mounting is usually in the driver desk to give direct computer independent reading of key values such as speed, volts, amps, bar, etc.

  • D3a-136-B railway panel indicator

     Round panelmeter for railway applications, single pointer. General specifications Accuracy 1.5 % F.S.D. addirional 0.75 % / 10 °C Operating temperature -25 °C...+70 °C Humidity at 40 °C max. 95 % Protection IP54 rear IP50 (terminals IP00) Vibrations 5...150 Hz, 2 g random 3 x 5 h acc. EN 61373 (50155) Shock acc. EN 61373 Test voltage 2 kV Illumination LEDS, any voltage between 24 and 110 VAC/VDC Scale and…

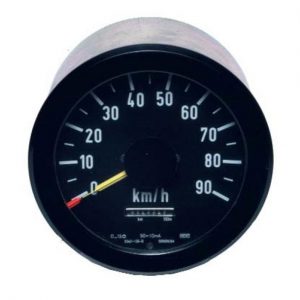

  • D3a2-136-B railway panel indicator

     Round panelmeter for railway applications, double pointer.   General specifications Accuracy 1.5 % F.S.D. addirional 0.75 % / 10 °C Operating temperature -25 °C...+70 °C Humidity at 40 °C max. 95 % Protection IP54 rear IP50 (terminals IP00) Vibrations 5...150 Hz, 2 g random 3 x 5 h acc. EN 61373 (50155) Shock acc. EN 61373 Test voltage 2 kV Illumination LEDS, any voltage between 24 and 110 VAC/VDC Scale…

  • D3a85-B railway panel indicator

     Round panelindicator for railway applications, single pointer. General specifications Accuracy 1.5 % F.S.D. 0.75 % / 10 °C Operating temperature -25 °C...+70 °C Humidity at 40 °C max 95 % Protection Front IP54 Rear IP50 (terminals IP00) Vibrations 5...150 Hz, 2 g random 3 x 5 h acc. EN 61373 (50155) Shock According to EN 61373 Test voltage 2 kV Illumination LEDS, Any voltage between 24 V and 110 VAC/VDC…

  • D3v-144S-B railway panel indicator

     Square panelmeter for railway applications, single pointer. General specifications Accuracy 1.5 % F.S.D. 0.75 % / 10 °C Operating temperature -25 °C...+70 °C Humidity at 40 °C max. 95 % Protection front IP54 rear IP50 (terminals IP00) Vibrations 5...150 Hz, 2 g randaom 3 x 5 h acc. EN 61373 (50155) Shock acc. EN 61373 Test voltage 2 kV Illumination LEDS, any voltage between 24 and 110 VAC/VDC Scale and…

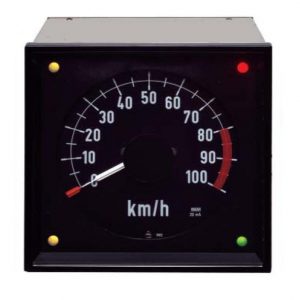

  • D3v2-144S-B railway panel indicator

     Square panelmeter for railway applications, double pointer. General specifications Accuracy 1.5 % F.S.D. 0.75 % / 10 °C Operating temperature -25 °C...+70 °C Humidity at 40 °C max. 95 % Protection front IP54 rear IP50 (terminals IP00) Vibrations 5...150 Hz, 2 g randaom 3 x 5 h acc. EN 61373 (50155) Shock acc. EN 61373 Test voltage 2 kV Illumination LEDS, any voltage between 24 and 110 VAC/VDC Scale and…

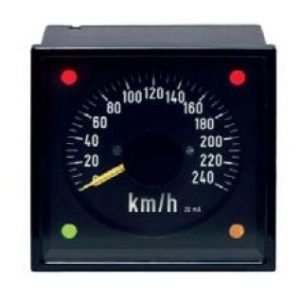

  • D3v2-96S-B railway panel indicator

     Square panelmeter for railway applications, double pointer. General specifications Accuracy 1.5 % F.S.D. 0.75 % / 10 °C Operating temperature -25 °C...+70 °C Humidity at 40 °C max. 95 % Protection front IP54 rear IP50 (terminals IP00) Vibrations 5...150 Hz, 2 g randaom 3 x 5 h acc. EN 61373 (50155) Shock acc. EN 61373 Test voltage 2 kV Illumination LEDS, any voltage between 24 and 110 VAC/VDC Scale and…

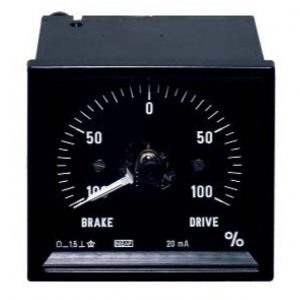

  • D3v72S-B railway panel indicator

     Square panelmeter for railway applications, single pointer. General specifications Accuracy 1.5% F.S.D. 0.75 % / 10 °C Operating temperature -25 °C...+70 °C Humidity at 40 °C max. 95 % Protection front IP54 rear IP50 (terminals IP00) Vibrations 5...150 Hz, 2 g random 3 x 5 h acc. EN 61373 (50155) Shock acc. EN 61373 Test voltage 2 kV Illumination Leds, any voltage between 24 and 110 VAC/VDC Scale and pointer…

  • Dd96S-B railway panel indicator

     Rectangle panemeter for railway applications. General specifications Accuracy 1.5 % F.S.D. addirional 0.75 % / 10 °C Operating temperature -25 °C...+70 °C Humidity at 40 °C max. 95 % Protection IP54 rear IP50 (terminals IP00) Vibrations 5...150 Hz, 2 g random 3 x 5 h acc. EN 61373 (50155) Shock acc. EN 61373 Test voltage 2 kV Illumination LEDS, any voltage between 24 and 110 VAC/VDC Scale and pointer Black…

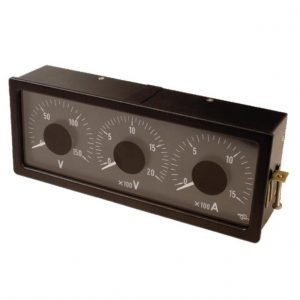

  • Dri3M240A railway panel indicator

     Triple indicator for railway applications. General specifications Availibility Available with 90o pointer deflection as Dri3M240A, or with 240o pointer defelction as D3riM240S. Sizes Front 240 x 96 mm Panel cut out 236 x 92 mm Illumincation supply 24 VAC/DC, other voltage on request Approx. consumption 2 W Illumination type LED Input 4...20 mA, 0...20 mA, +/- 20 mA, +/- 10 V, 0...V other inputs on request Accuracy + 1.5 %…

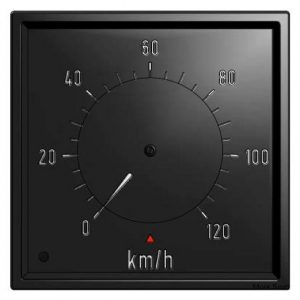

  • Panel indicator with stepper motor technology

     The new developed stepper panel indicator is an extension to the analogue panel indicator range of Mors Smitt. This new indicator based on stepper motor technology ensures a solid and very accurate,<0,5%, indication of any requested signal. (more…)
