Test tools

For safe and quick detection of voltage presence, four voltage detectors are available. Approaching a voltage leading part, the voltage detectors will indicate this in several ways. The VoltSpotter indicates optical, the VoltBeeper, VoltSafe and VoltPointer indicate both optical and acoustic signal. The Voltsafe and the VoltPointer are not only instruments for voltage detection but also for non-voltage detection.

The line of voltage testers EazyVolt, offer the ability to measure and indicate the exact voltage (AC / DC), phase indication, phase rotation, continuity and even frequency (EazyVolt plus). The EazyAmp is a versatile electrical tester for measuring current up to 200A in a CAT IV 600V environment. The EazyTester is an universal and easy to use, fully automatic Test Tool. The instrument detecs and switches automatically to the quantity to be measured, based on a priority system. All the models and the differences between them are shown in the selection diagram below.

Download:

doc-instruments-test-tools-v1-2-en

  • EazyAmpPLUS Current clamp

     True RMS current clamp with open jaw The EazyAmpPLUS is an user friendly current clamp with open jaw, to measure currents up to 200 A quick and safe. The meter is equipped with a special screen and backlight to be able to measure well in less lit places. Also, the tester has a special low impedance stand to stray voltages to suppress. The EazyAmpPLUS also measures AC/DC voltage, resistance, capacity, diode and…

  • EazyLAN UTP/STP RJ45 LAN cable tester

     The EazyLAN is a handheld cable tester, suitable for fast and easy testing of UTP/STP network cables (RJ45). The EazyLAN is equipped with a manuel and auto test mode and gives the user a good/fault indication at the end of a test. If the cable has failed the EazyLAN will indicate via LEDs whether the cable is broken, shorted or has cross cable conductors, and also which conductors are affected.…

  • EazyPhase Phase- / motor rotation tester

     The EasyPhase is a 4-in-1 test tool for indication of phase rotation, indication of an open phase and field rotation indication of motors. The tester is ideal for installing conveyor lines, pump systems and interconnected drivers. Features Determine rotary field direction Determine motor connection Indication of open phase Magnetic field detection Specifications Functions Voltage 120...600 VAC Frequency 2...400 Hz Algemeen Power consumption Approx. 3.5 mA at phase rotation Approx. 20…

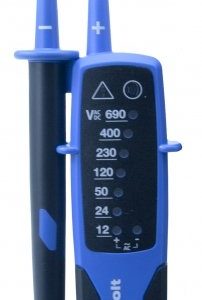

  • EazyVolt Basic

     The EazyVolt Basic is a compact reliable robust automatic voltage tester up to 690V, with the following functions: Measuring AC voltage Measuring DC voltage Singel-Pole Phase detection Continuity Features Fully automatic Fail safe (no battery for VAC/DC measurement) Audible sound (when battery is OK) Schuko outlet compliant (19 mm) 1 hand operation Including Batteries Manual Specifications Function Range Voltage 10…690V AC Continuity  0…500kΩ + 50% General Auto power on  >12…

  • EazyVolt Pro LCD 2-pole Voltage tester

     Thee EazyVolt Pro LCD is a reliable and safe 12-in-1 automatic voltage tester up to 1000 VAC and 1500 VDC, with the following functios: Measuring AC voltage up to 1000 V Measuring DC voltage up to 1500 V Phase detection (1-pole) Non contact voltage detection Resistance and frequency Continuity / diode RCD test Phase rotation Features Llarge LCD with background illumination High resolution voltage measuring (0-30 V) Audible sound Vibration…

  • EazyVolt Pro LED+ – 2-pole Voltage tester

     The EazyVolt Pro LED is a reliable and safe 8-in-1 automatic voltage tester up to 690 V, with the following functions: Measuring AC voltage Measuring DC voltage Phase detection (1-pole) Continuity Phase rotation Selftest Torch RCD test Features Fully automatic Audible sound Torch by ultra bright LED Stray voltage suppression Selectable probe tips 2 - 4 mm\ Side indication Water resistance (IP65) Fail safe (no battery needed for VAC/DC measurements)…

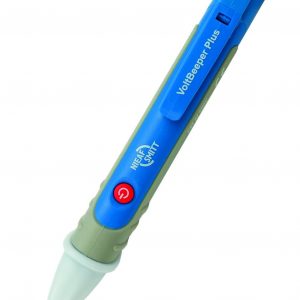

  • VoltBeeper Plus Voltage detector

     The VoltBeeper Plus is an automatic non-contact voltage detector with optical and acoustic signal. (more…)
