Solar PV installation testers

Test and Measurement of Solar PV Installations

The production and use of renewable energy is stimulated by the European Union and via government incentives (e.g. through RES directives) and the prices for solar panels are dropping, leading to a growing number of solar panel installations. With this the demand for initial and periodic testing of the solar panels is growing.

Site survey, installation and commissioning of solar installations demands attention to safety, sustainability, reliability and efficiency / output of the solar panel system.

Several guidelines and legislation is applicable:

  • IEC 62446:2009 (Minimum requirements for system documentation, commissioning tests and inspection)
  • IEC 60364-6 (Low-voltage electrical installation – part 6: verification)
  • NEN 1010 / NTA 8013 (The Netherlands)

The IEC 62446 demands several tests & measurements that must be provided to the end-user, when installing a solar panel system:

  • Visual inspection: is the installation wired correctly? No damage to cables during installation?
  • Insulation resistance measurement (Riso)
  • Earth continuity measurement (Rpe)
  • PV String short circuit current (Isc)
  • PV String open circuit Voltage (Uoc)
  • Solar irradiance
  • Roof orientation and pitch

To safely install new solar panels (in line with the international standards) and to optimize the periodic testing of solar panel installations Nieaf-Smitt has developed the EazyPV tester. Easy and effective testing of all solar installation parameters in one device. The solar panels do not need to be opened/dismantled for this, the uniform solar panel connectors can be connected directly on the EazyPV.

The new solar PV installation tester EazyPV includes all functionalities to perform pre-installation site surveys and measure the electrical safety and performance of installed PV systems in line with the international IEC 62446 standard. Enabling contractors to safely, thoroughly and effectively install and maintain solar PV installations.

The new high specification IRM100 combines irradiance measurement with a hosts other features to enable solar PV and solar thermal contractors to carry out site surveys quickly and easily. The versatile device uses a precision PV cell sensor for the highly accurate irradiance measurement, displaying results in either W/m2 or BTU/h/ft2.

The EazyPV and IRM100 testers include all of the necessary functions to measure the electrical safety and performance of PV systems as well as irradiance. Additionally the kit is suitable to conduct site-surveys for potential installations; providing the information needed to calculate estimated annual solar irradiation and system yields of PV and solar thermal systems, as described in several local guidelines.

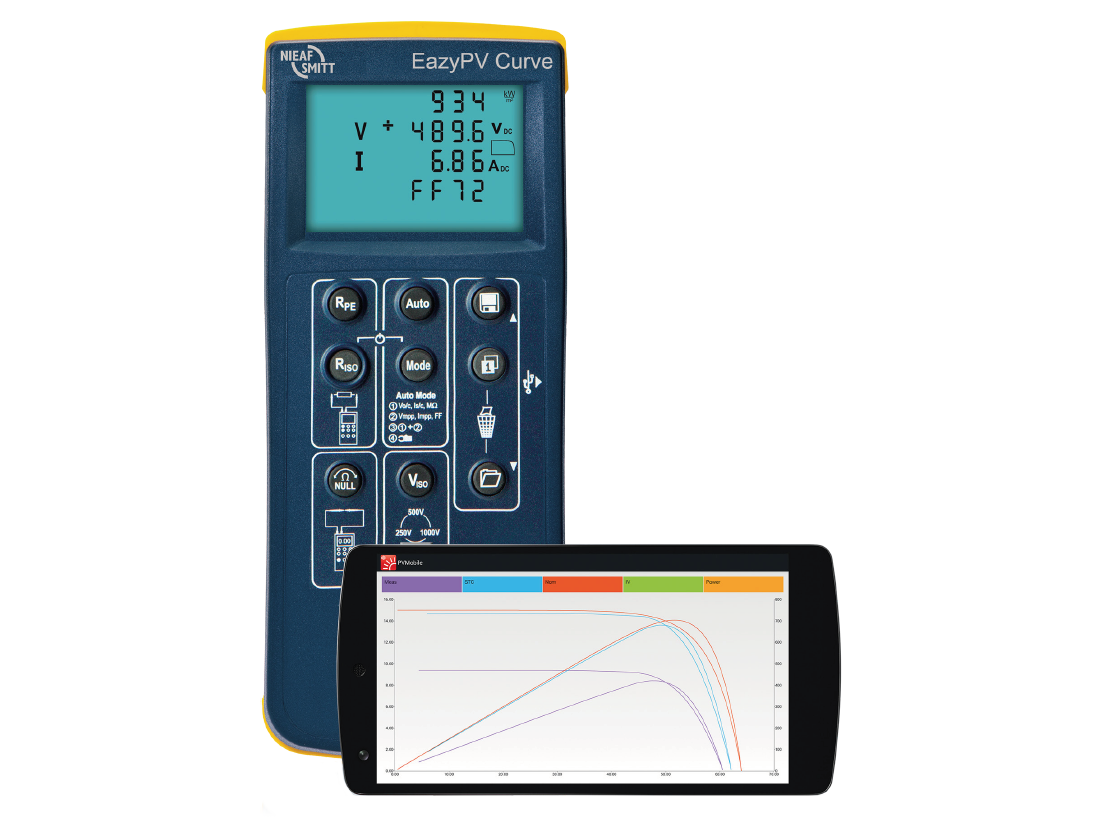

  • EazyPV Curve PV installation tester with IV curve

     The EazyPV Curve combines all electrical PV testing functions, according the EN 62446 standard, in one safe and convenient tester. By adding the I-V curve, the tester becomes a general purpose general purpose PV analysis tool. The EazyPV Curve determines in a simple way the quality of a of a PV system by determining the fill factor of the I-V curve. With the help of the Solar Strength Meter the…

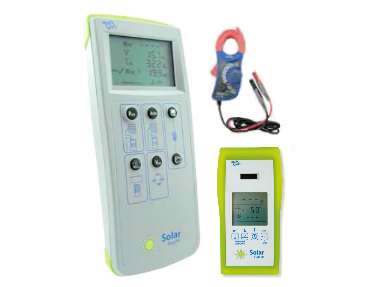

  • EazyPV installation kit

     The EazyPV installation kit consists of: EazyPV installation tester IRM100 solar meter PV Link software NI T38 clamp meter adapter Test adapters Order number: 626000765

  • EazyPV Solar PV istallationtester

     The compact PV-installationtester with digital display is the quickest on the market. The EazyPV combines all PV electrical test functions required to meet IEC 62446 into one safe, easy-to-use, hand-held device. The addition of USB and wireless connectivity in combination with the IRM100, make the EazyPV the most versatile PV tester on the market. Features Visual inspection: is the installation wired up correct? No damage to cables during installation? Insulation…

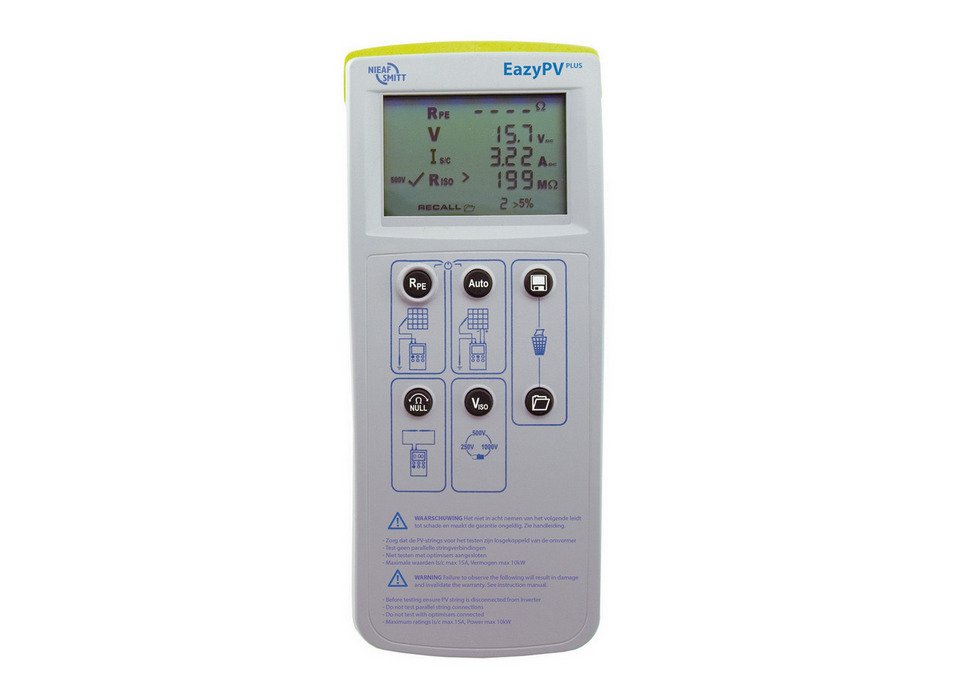

  • EazyPV+ Solar PV installation tester

     The search for PV panels with higher yields has brought about new techniques that can produce higher inrush currents. The new EazyPV+ has been developed to keep up with these new technologies. The EazyPV+ has the following features: Connect to the production of PV panels with higher efficiency Up to 300% better protection against high inrush currents. The compact PV-installationtester with digital display is the quickest on the market. The…

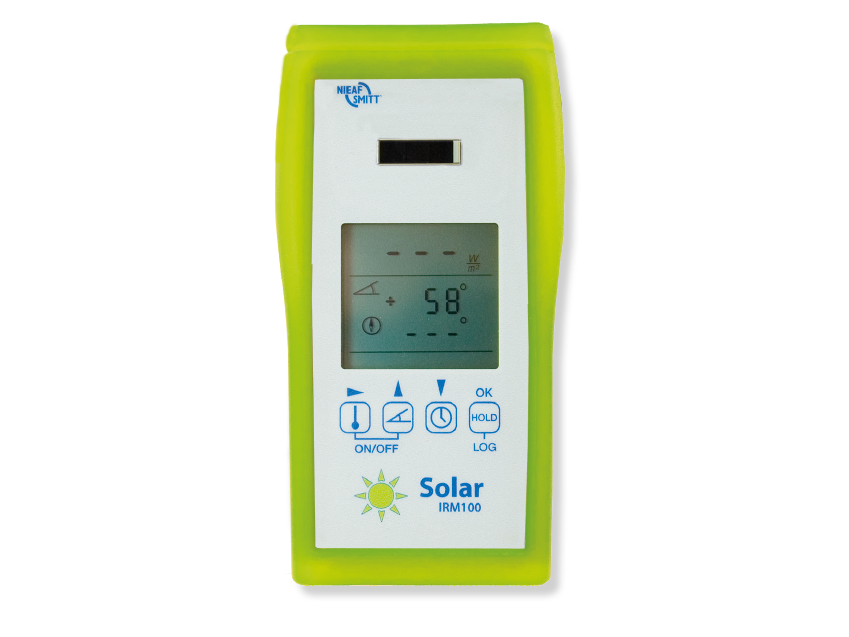

  • IRM100 Irradiance meter

     To determine the quality and efficiency of solar panels, it is important to check the circumstances in which the measurements are done. Features Irradiance Temperature Compass Tilt Specifications Functions Range Irradiance Display 0...1500 W/m² Measurement 100...1250 W/m² Resolution 1 W/m² Temperature Display -30 °C...+125 °C Measurement -30 °C...+125 °C Resolution 1° Compass Display 0 °...360 ° Measurement 0 °...360 ° Resolution 1° Tilt Display 0 °...90 ° Measurement 0 °...90 ° Resolution 1°…

  • NI 18 Plus Complete stroomtang

     True RMS current clamp (more…)

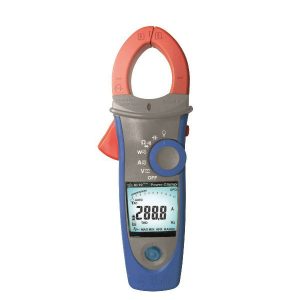

  • NI 19 Plus Current Clamp

     The NI 19PLUS is a sturdy, high quality multifunctional True RMS current clamp. The clamp can measure up to 600 AAC/DC and 1000 VAC/VDC. Other functionalities like power factor, power (Watt) and phase rotation complete the NI 19PLUS as the most allround clamp in the range. The fact that the NI 19PLUS can measure both AC and DC power, makes the clamp very suitable for measuring solar PV-systems. In combination with the EazyFlex…

  • NI T38 Compact AC/DC current clamp adapter

     Compact AC/DC current clamp adapter (more…)

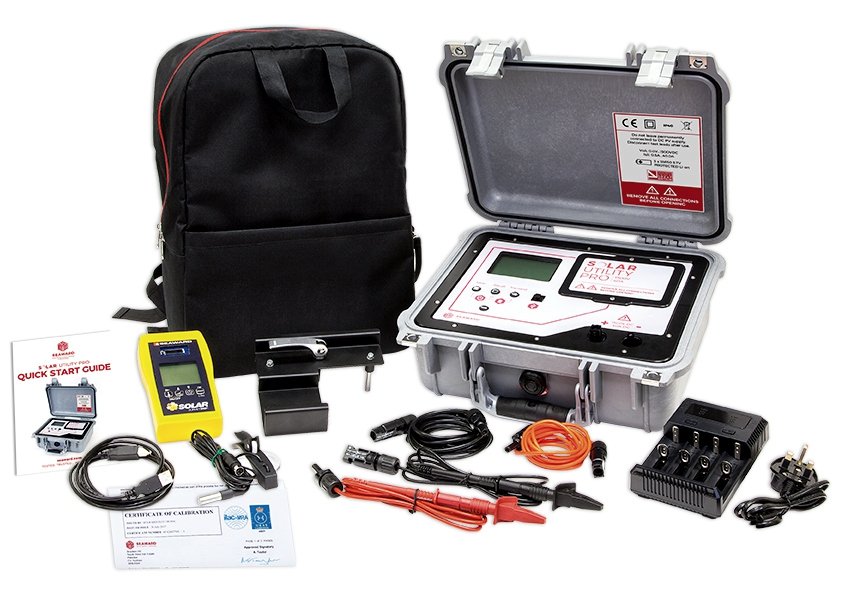

  • Solar Utility Pro kit

     Robust 1500V 40A solar PV string checker Test multiple strings in parallel up to 1500V 40A Test at a string level or in the combiner box Record up to 999 full sets of string data Test open circuit voltage (Voc), short circuit current (Isc), irradiance (W/m2), ambient temperature & more Order number: 626000858
