Power Utility

  • 2C63 Definite Time Current Check Relay

     The 2C63 Series relays are adjustable AC current sensing relays designed for high or low voltage power systems where they can be used in a large number of vercurrent applications. Definite time overcurrent relays offer advantages over inverse time protection in power systems which have a wide variation in source impedance. Faults can be cleared in relatively short times irrespective of the magnitude of the fault current, & coordination of…

  • 2C65 Current Check Relay

     The 2C65 Series relays are adjustable AC current sensing relays designed for high or low voltage power systems where they can be used in a large number of overcurrent applications. The 2C65 Series relay is a three pole current detector with independently adjustable sensing circuits driving a common adjustable digital setting timing element. Five (5) status inputs & eight (8) relay outputs are provided as standard to allow the 2C65…

  • 2H34-S Four Stage Frequency Relay

     The 2H34-S Series relay is a frequency monitoring relay with four stages of adjustable frequency pick up & drop out points. Each frequency set point can be set for under or over frequency operation & has an independent time delay driving an output relay. An undervoltage lockout is used to disable the four frequency outputs when the voltage falls below a preset level. Each of the four setting stages has…

  • 2L10 / 2L11 Battery Earth Fault Relays

     Features Wide range of battery voltages catered for High sensitivity 2L11 model differentiates between positive & negative earth faults Low burden Fast operate time High output contact rating with optional magnetic arc blowouts Optional hand reset flag Size 2M draw out case Application Sub-station battery supplies are critical to the correct operation of critical protection & other functions. The 2L10 & 2L11 are designed to operate on earth faults or…

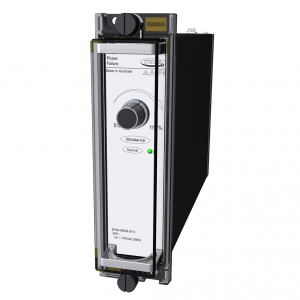

  • 2P48 Potential Selecting Relay

     The 2P48 relay is a phase failure relay suitable for 3 phase supplies. The relay is designed to automatically change over from the primary supply to the secondary supply if any phase of the primary supply has faulted. The 2P48 output relay is normally energised and drops out if the phase angle unbalance is greater than the pre-set, an under voltage or reverse phase sequence condition exists. A front panel…

  • 2P49 Three Phase Voltage Monitoring Relay

     The main earth fault protection relays in distributions systems, power stations & large manufacturing / processing plants can fail to detect a high impedance breakdown to earth causing hazard to human life & potential damage to plant & equipment. In these & other situations demanding extra sensitive earth fault protection, the 2P49 relay using solid state techniques, can be applied to detect earth currents down to 0.5% of the CT…

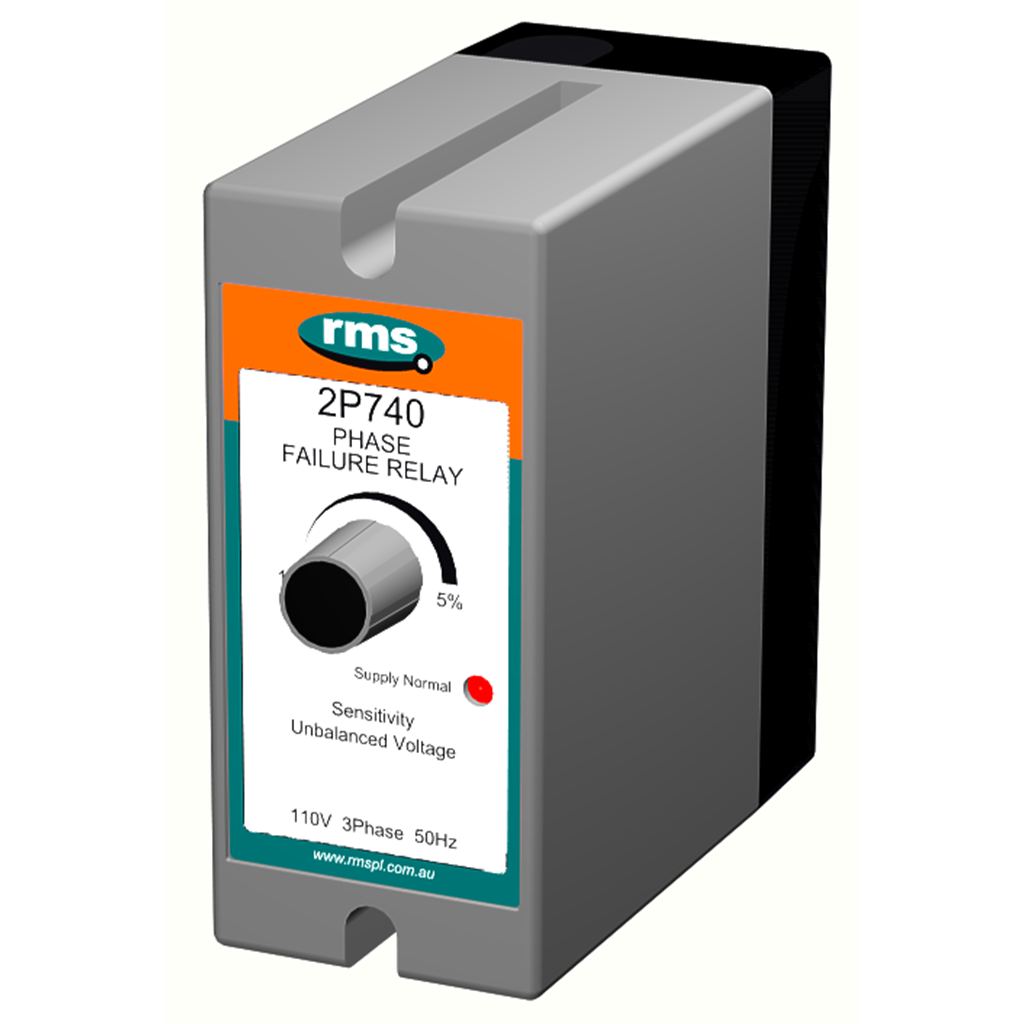

  • 2P740 700 Series Fail, Reversal, Under voltage Relay

     The 2P740 Series relays are solid state voltage sensing relays with electromechanical output contacts. Designed for application on 3 phase AC voltage systems the 2P740 is ideally suited to monitor power supply phase angle imbalance, undervoltage and reverse phase sequence. The 2P740 measuring circuitry keeps the output relay energised while the 3 phase supply remains within the specified imbalance window thus providing failsafe system protection. In the event of any…

  • 2SY212-S Synchronism Check Relay

     The 2SY212 synchronism check relay is designed to measure the phase angle between the monitored single phase voltages on the line & bus sides of a circuit breaker & verify that this angle is less than setting. If the measured angle has met this criteria for the time period defined by setting & the voltage magnitudes meet the criteria established by the Live Line/Bus & U/V Line/Bus settings, the output…

  • 2T105 Multi Range Digital Setting Time Delay Relay

     The 2T105 time delay relay is particularly suitable for use in protection & control schemes where precision time delays are required. CB Fail A typical use is for providing a definite time delay in circuit breaker failure protection. For example: The transformer multi-trip relays energize the 2T105 timer & if the circuit breaker (CB) fails to clear the fault within the pre-set (0.6s) the timer times out & operates a…

  • 2TD770 700 Series Temperature Sensing Relay

     The 2TD770 Series relays are solid state temperature sensing relays for use in motor protection applications where sensors are located in the stator windings. Heavy duty industrial motors are prone to catastrophic failure. If overheating occurs due to such circumstances as locked rotor, restricted cooling or heavy starting conditions. The 2TD770 can be used to effectively monitor the motor temperature and switch its mechanical output relay to indicate an alarm…

  • 2V164-S Voltage Regulating & Tap Change Control Relay

     The 2V16x Series relays are designed for the control of motor driven on-load power transformer tap changers. The 2V164-S Voltage Regulator Relay continuously monitors the transformer output voltage & current & provides “RAISE” & “LOWER” control commands to the on-load tap changer such that the load centre is automatically maintained within acceptable limits. Small variations in supply frequency will not affect the system performance. When designing the 2V164-S, considerable emphasis…

  • 2V165-S Transformer Parallel Control Relay

     The 2V16x Series relays are designed for the control of motor driven on-load power transformer tap changers. The 2V165 Series relays are designed to monitor & control the tap changers of up to four (4) transformers connected on a common bus & operating in the master slave control configuration. Master follower parallel control schemes traditionally use auxiliary switches on the tap changers to determine out of step errors. While this…

  • 2V200 Tap Position Indicator (TPI) Voltage to Frequency Sender Unit

     The 2V200 is specifically designed for operation with the RMS type 2V164 Voltage Regulating Relay (VRR) & application on power transformers fitted with on load tap changers. The 2V200 provides a noise immune interface between the tap changer & a remote tap position indicator (TPI), display. The 2V200 is designed to interface with tap changers using either binary / BCD coded signals or a traditional voltage divider circuit. The 2V200…

  • 2V67-S Four Stage Voltage Relay

     The 2V67-S Series relay is a three pole voltage monitoring relay with four stages of adjustable voltage pick up & drop out points. Each voltage set point can be set for under or overvoltage operation & has an independent time delay driving an output relay. An undervoltage lockout is used to disable the four voltage outputs when the voltage falls below a preset level. A single status input is used…

  • 2V68-S BUS Bar CT Supervision & Shorting

     The 2V68 is a three phase monitoring device designed to provide continuous supervision of the CT circuits in high impedance differential protection schemes. The relay will detect open circuit conditions in the CT summation wiring and open circuited main current transformers. (more…)

  • 2V73 High Impedance Differential Relay

     The 2V73 relay provides high speed differential protection for various items of power system plant including generators, busbars, motors & the individual windings of power transformers. The 2V73 is also suitable for restricted earth fault applications. The relay measuring element is basically an attracted armature unit of simple & rugged construction powered from a bridge rectifier. Each phase of the relay can be set from 25 to 325V AC in…
