6RJ Series High Speed Tripping Relays

•

  6RJ11 Low Burden Self Reset High Speed Trip Relay

  Features High speed operation Low burden Self reset contacts Hand reset flag indicator 5 or 10 contacts Equivalent function to MVAJ11 2HSM502 specification Application The effect of a fault on a power system is dependent on the speed with which the fault can be detected & isolated. The 6RJ Series multi-contact high-speed trip relays are used for this isolating function roviding simultaneous tripping outputs. A high speed coil provides fast…
•

  6RJ13 Low Burden Hand Reset Trip & Lock Out Relay

  Features High speed operation Low burden Hand reset contacts & flag 5 or 10 contacts Equivalent function to MVAJ13 2HSM504 specification Application The effect of a fault on a power system is dependent on the speed with which the fault can be detected & isolated. The 6RJ Series multi-contact high-speed trip relays are used for this isolating function providing simultaneous tripping outputs. A high speed coil provides fast operation.
•

  6RJ14 Low Burden Electrical Reset Trip & Lockout Relay

  Features High speed operation Low burden Electrical reset contacts Independent hand reset flag 5 or 10 contacts 2HSM506 specification Application The effect of a fault on a power system is dependent on the speed with which the fault can be detected & isolated. The 6RJ Series multi-contact high-speed trip relays are used for this isolating function providing simultaneous tripping outputs. A high speed coil provides fast operation.
•

  6RJ15 Low Burden Hand / Electrical Reset Trip & Lockout Relay

  Features High speed operation Low burden Hand & electrical reset contacts Independent hand reset flag 5 or 10 contacts Equivalent function to MVAJ15 2HSM509 specification Application The effect of a fault on a power system is dependent on the speed with which the fault can be detected & isolated. The 6RJ Series multi-contact high-speed trip relays are used for this isolating function providing simultaneous tripping outputs.
•

  6RJ21 High Speed Tripping Relay

  The 6RJ21 is a high burden self reset tripping relay suitable for applicationin high security circuit breaker tripping circuits & in particular where theinitiating contact may be remote from the relay. The high burden mayalso allow the satisfactory operation of external series elements. The 6RJ21 has a high burden to provide immunity to capacitancedischarge currents. Power to the coil is economized to a low figure toprovide thermal protection. High burden…
•

  6RJ21-20 High Speed Tripping Relay

  The 6RJ21 is a high burden relay suitable for application in high securitycircuit breaker tripping circuits & in particular where the initiatingcontact may be remote from the relay. The high burden may also allowthe satisfactory operation of external series elements. The 6RJ21 has a high burden to provide immunity to capacitancedischarge currents & power to the coil is cut off at operation or iseconomized to a low figure to provide…
•

  6RJ22 High Speed Tripping Relay

  The 6RJ22 is a high burden self reset high speed tripping relay suitable for application in high security circuit breaker tripping circuits & where the initiating contact may be remote from the relay. The high burden may also allow the satisfactory operation of external series elements. High burden tripping relays are designed to withstand the 10uF capacitor discharge test such that the relay will not operate when a 10uF capacitor…
•

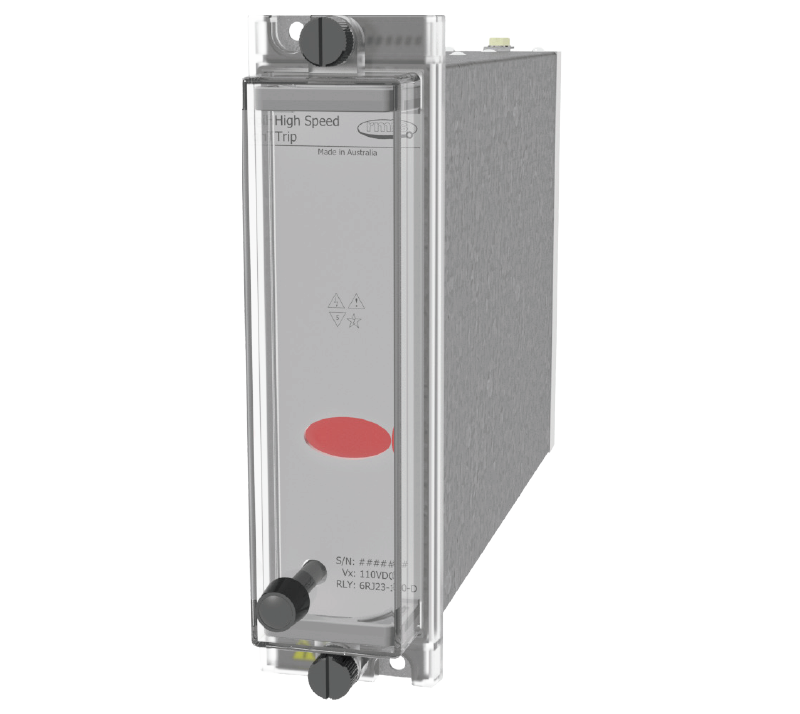

  6RJ23 High Speed Tripping Relay

  The 6RJ23 is a high burden hand reset lock out relay suitable for application in high security circuit breaker tripping circuits & in particular where the initiating contact may be remote from the relay. The high burden may also allow the satisfactory operation of external series elements. The 6RJ23 has a high burden to provide immunity to capacitance discharge currents. Power to the coil is cut off at operation or…
•

  6RJ23-20 High Speed Tripping Relay

  The 6RJ23 is a high burden hand reset lock out relay suitable for application in high security circuit breaker tripping circuits & in particular where the initiating contact may be remote from the relay. The high burden may also allow the satisfactory operation of external series elements. The 6RJ23 has a high burden to provide immunity to capacitance discharge currents & power to the coil is cut off at operation…
•

  6RJ24 High Burden Electrical Reset Trip & Lockout Relay

  Features High speed operation High burden Electrical reset contacts Independent hand reset flag 5 or 10 contacts Equivalent function to MVAJ24 2HSM516 specification Application The effect of a fault on a power system is dependent on the speed with which the fault can be detected & isolated. The 6RJ Series multi-contact high-speed trip relays are used for this isolating function roviding simultaneous tripping outputs. A high speed coil provides fast…
•

  6RJ24-20 High Burden Electrical Reset Trip & Lockout Relay

  Features High speed operation High burden Electrical reset contacts Independent hand reset flag 20 contacts Equivalent function to MVAJ24 2HSM516 specification Application The effect of a fault on a power system is dependent on the speed with which the fault can be detected & isolated. The 6RJ Series multi-contact high-speed trip relays are used for this isolating function roviding simultaneous tripping outputs. A high speed coil provides fast operation( smaller…
•

  6RJ25 High Speed Tripping Relay

  The 6RJ25 is a high burden relay suitable for application in high security circuit breaker tripping circuits & in particular where the initiating contact may be remote from the relay. The high burden may also allow the satisfactory operation of external series elements. The 6RJ25 has a high burden to provide immunity to capacitance discharge currents & power to the coil is cut off at operation or is economized to…
•

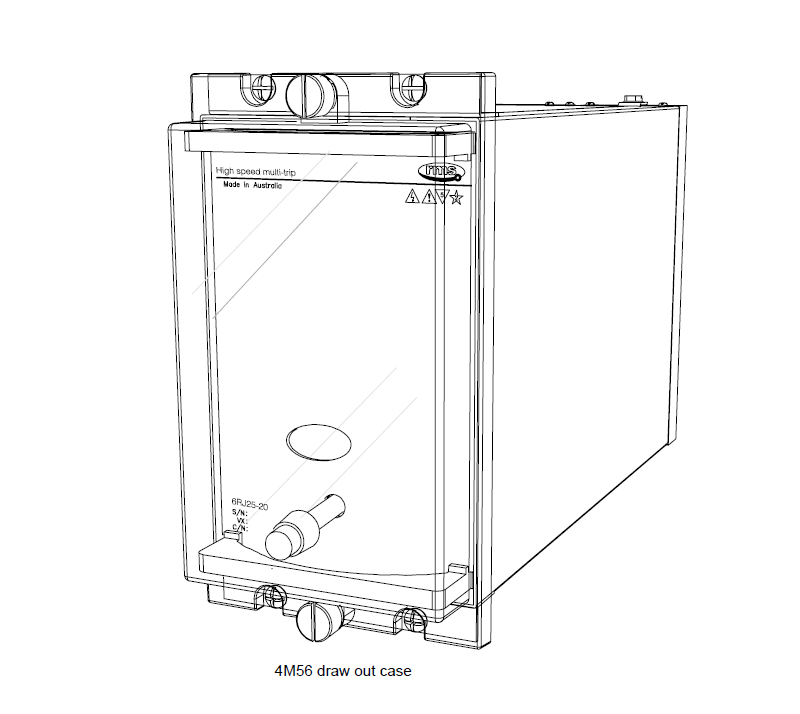

  6RJ25-20 High Speed Tripping Relay

  The 6RJ25 is a high burden relay suitable for application in high security circuit breaker tripping circuits & in particular where the initiating contact may be remote from the relay. The high burden may also allow the satisfactory operation of external series elements. The 6RJ25 has a high burden to provide immunity to capacitance discharge currents & power to the coil is cut off at operation or is economized to…
•

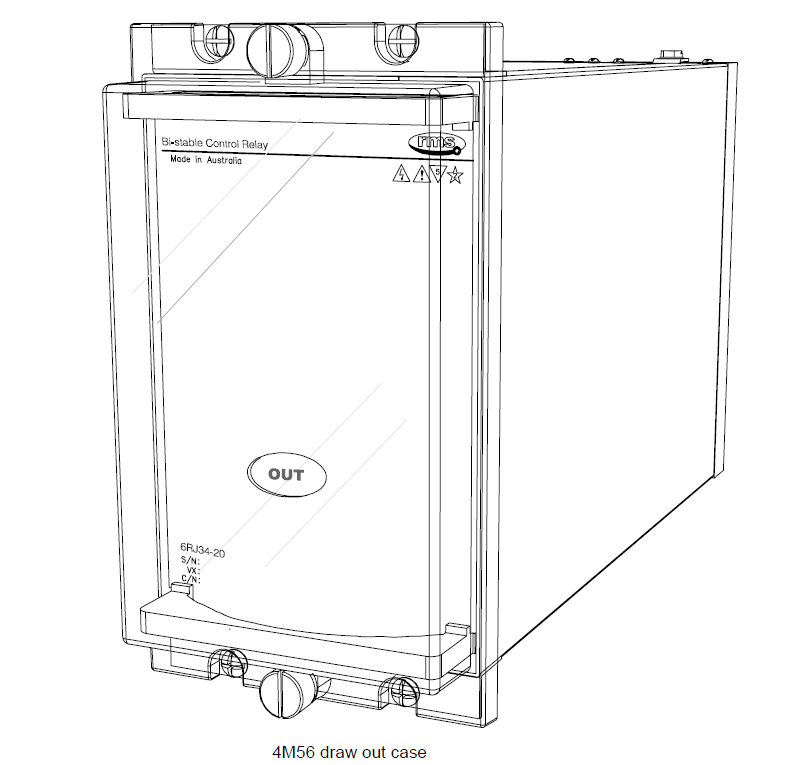

  6RJ34-10 Bistable Control Relay

  Features Meets NGTS 2.19.1999 Electrical set and reset contacts and flag 10 contact version Electrical reset inhibit function Alternative to MVAJ34 and TR431 relays Application The 6RJ34 is a bi-stable control relay designed to switch protection and auto reclosing IN and OUT of service from a remote point via pilot wires. Application of a control signal to the operate coil inputs will cause the relay to pick up changing the…
•

  6RJ34-20 Bistable Control Relay

  Features Meets NGTS 2.19.1999 Electrical set and reset contacts and flag 20 contact version Electrical reset inhibit function Alternative to MVAJ34 and TR431 relays Application The 6RJ34 is a bi-stable control relay designed to switch protection and auto reclosing IN and OUT of service from a remote point via pilot wires. Application of a control signal to the operate coil inputs will cause the relay to pick upchanging the state…
