Industry

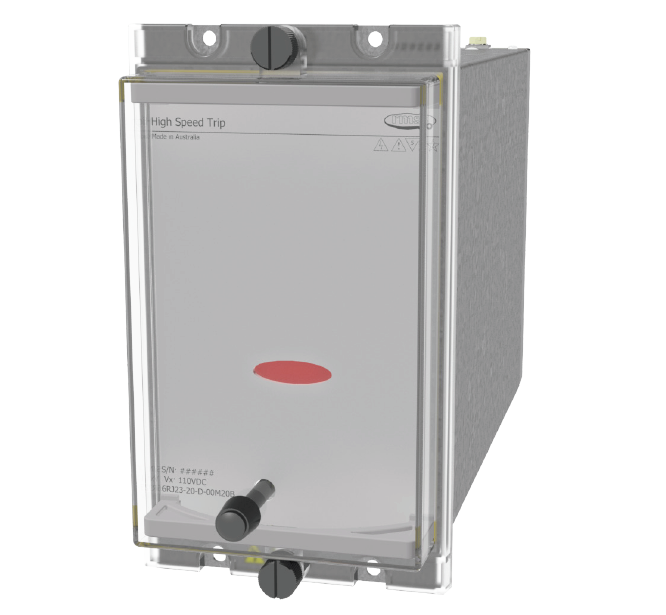

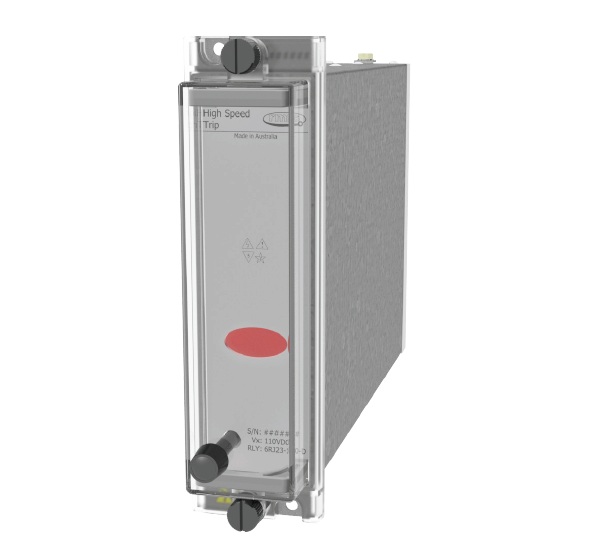

  • 6RJ23 High Speed Tripping Relay

     The 6RJ23 is a high burden hand reset lock out relay suitable for application in high security circuit breaker tripping circuits & in particular where the initiating contact may be remote from the relay. The high burden may also allow the satisfactory operation of external series elements. The 6RJ23 has a high burden to provide immunity to capacitance discharge currents. Power to the coil is cut off at operation or…

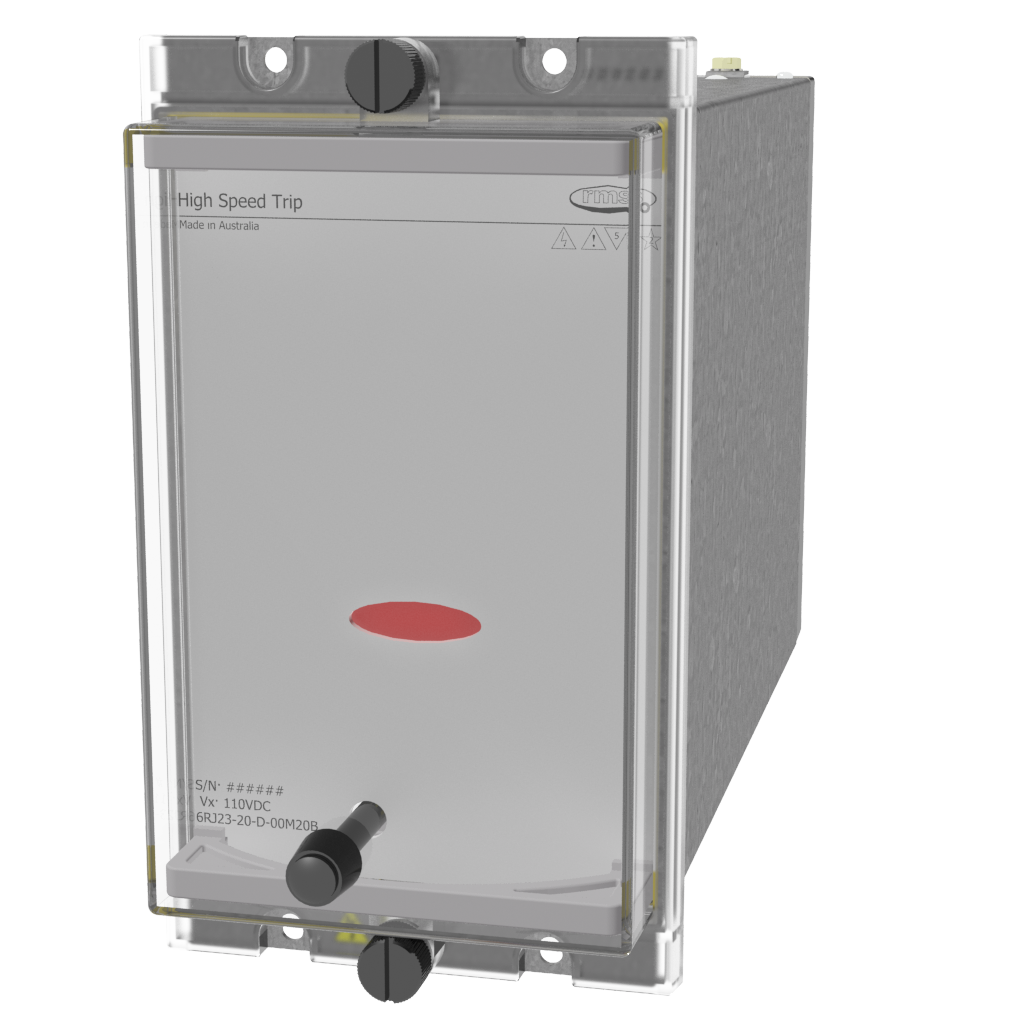

  • 6RJ23-20 High Speed Tripping Relay

     The 6RJ23 is a high burden hand reset lock out relay suitable for application in high security circuit breaker tripping circuits & in particular where the initiating contact may be remote from the relay. The high burden may also allow the satisfactory operation of external series elements. The 6RJ23 has a high burden to provide immunity to capacitance discharge currents & power to the coil is cut off at operation…

  • 6RJ24 High Burden Electrical Reset Trip & Lockout Relay

     Features High speed operation High burden Electrical reset contacts Independent hand reset flag 5 or 10 contacts Equivalent function to MVAJ24 2HSM516 specification Application The effect of a fault on a power system is dependent on the speed with which the fault can be detected & isolated. The 6RJ Series multi-contact high-speed trip relays are used for this isolating function roviding simultaneous tripping outputs. A high speed coil provides fast…

  • 6RJ24-20 High Burden Electrical Reset Trip & Lockout Relay

     Features High speed operation High burden Electrical reset contacts Independent hand reset flag 20 contacts Equivalent function to MVAJ24 2HSM516 specification Application The effect of a fault on a power system is dependent on the speed with which the fault can be detected & isolated. The 6RJ Series multi-contact high-speed trip relays are used for this isolating function roviding simultaneous tripping outputs. A high speed coil provides fast operation( smaller…

  • 6RJ25 High Speed Tripping Relay

     The 6RJ25 is a high burden relay suitable for application in high security circuit breaker tripping circuits & in particular where the initiating contact may be remote from the relay. The high burden may also allow the satisfactory operation of external series elements. The 6RJ25 has a high burden to provide immunity to capacitance discharge currents & power to the coil is cut off at operation or is economized to…

  • 6RJ25-20 High Speed Tripping Relay

     The 6RJ25 is a high burden relay suitable for application in high security circuit breaker tripping circuits & in particular where the initiating contact may be remote from the relay. The high burden may also allow the satisfactory operation of external series elements. The 6RJ25 has a high burden to provide immunity to capacitance discharge currents & power to the coil is cut off at operation or is economized to…

  • 6RJ34-10 Bistable Control Relay

     Features Meets NGTS 2.19.1999 Electrical set and reset contacts and flag 10 contact version Electrical reset inhibit function Alternative to MVAJ34 and TR431 relays Application The 6RJ34 is a bi-stable control relay designed to switch protection and auto reclosing IN and OUT of service from a remote point via pilot wires. Application of a control signal to the operate coil inputs will cause the relay to pick up changing the…

  • 6RJ34-20 Bistable Control Relay

     Features Meets NGTS 2.19.1999 Electrical set and reset contacts and flag 20 contact version Electrical reset inhibit function Alternative to MVAJ34 and TR431 relays Application The 6RJ34 is a bi-stable control relay designed to switch protection and auto reclosing IN and OUT of service from a remote point via pilot wires. Application of a control signal to the operate coil inputs will cause the relay to pick upchanging the state…

  • 6RM QUAD Four Element Flag Relays

     The 6R QUAD range of four element flag relays are particularly suited to transformer protection panel applications where indication & signaling functions are required for events such as: Buchholz Gas Alarm Buchholz Oil Surge Trip Oil Temperature Alarm Oil Temperature Trip Winding Temperature Alarm Winding Temperature Trip (more…)

  • 6RX11 Trip Relay Circuit Supervision

     Features Low burden Contacts picked up for healthy trip coil condition Slug time delay Hand reset flag indicator 2 C/O contacts standard Draw out case Equivalent function to MVAX11 1TM13 specification Application The operating element for the 6R MATRIX supervision relay functional elements are designated 6RX & are based on our 6R eries relays. The 6RX11 relay is designed to supervise trip relay circuits utilizing high burden trip relays such…

  • 6RX12 Trip Supply Supervision Relay

     Features Low burden Contacts picked up for healthy supply condition contacts Slug time delay Hand reset flag indicator 2 C/O contacts standard Draw out case Equivalent function to MVAX12 1TM11 specification Application The operating element for the 6R MATRIX supervision relay functional elements are designated 6RX & are based on our 6R Series relays. The operating element of the 6RX12 comprises a single 6R heavy-duty attracted armature control relay with…

  • 6RX21 Trip Circuit Supervision Relay

     Features Low burden Monitors CB in both open &n closed condition Contacts picked up for healthy supply condition contacts Slug time delay Hand reset flag indicator 2 C/O contacts (Standard) Draw out case Equivalent function to MVAX21 1TM10 specification Application The operating element for the 6R MATRIX supervision relay functional elements are designated 6RX & are based on our 6R Series relays. The operating element of the 6RX21 comprises a…

  • 6RX31 Trip Circuit Supervision Relay

     Features Low burden Monitors CB in both open & closed condition Contacts picked up for healthy supply condition contacts Slug time delay Hand reset flag indicator 2 C/O contacts standard Draw out case Equivalent function to MVAX31 1TM12 specification Application The operating element for the 6R MATRIX supervision relay functional elements are designated 6RX & are based on our 6R Series relays. The operating element of the 6RX31 comprises three…

  • A031 Protection cover for increased protection

     A031 Protection cover for increased protection Ordering code: 501441017

  • A104 Key receptacle

     A104 key receptacle for V series sockets. Suitable for all D, D-U, CU relay series. Weight approx. 1 g. Order number: 378690100

  • A109 35 mm rail clip

     A109 makes relay sockets V10, V11, V12 and V13 suitable for 35mm (DIN) rail mounting. (more…)
