Navy products

For heavy-duty applications like marine/submarine ships we produce a series of shockproof instruments.
Maximum 100 G shockproof instruments for specific maritime applications. Maximum 30 G shockproof instruments according to STANAG 1008 (NATO). These instruments are designed according to request for the Royal Dutch Navy.
New:
Submarine x-rudder instrument. Four pointers in 1 instrument provide rudder angle information of all rudders.
Besides the input and scale printing we can design and produce these instruments for specific applications on customer request.

  • D3v…S/LED Moving coil indicator

     Indicators for navy applications, pointer rotation max. 240o Models Dimensions Weight D3v72S/LED 72 x 72 mm / 50 mm 400 g D3v96S/LED 96 x 96 mm / 90 mm 750 g D3v144S/LED 144 x 144 mm / 90 mm 900 g Shockproof 30 G STANAG 1008 (NATO) Inputs DC Current 1 mA...10 A DC Voltage 60 mV...500 V AC Current 1 mA...10 mA AC Voltage 10 V...500 V Protection class…

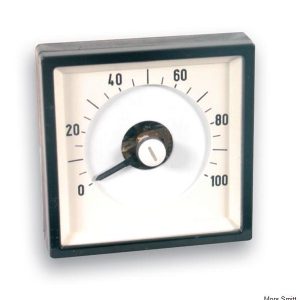

  • D3va72S Moving coil indicator

     Indicators for navy applications, pointer rotation max. 240o Type Dimensions Weight D3va72S 72 x 72 mm / 107 mm 500 g Shockproof 100 G Inputs DC Current 1 mA...10 A DC Voltage 60 mV...500 V AC Current 1 mA...10 mA AC Voltage 10 V...500 V Protection class IP54   Accuracy Class 1.5   Scale division Linear Pointer deflection, 240° Scale options White scale with black printing Black scale with white…
