Relay sockets & accessories for power relays

  • V17 socket – Spring terminal, wall / rail mount

     The V17 is a surface / wall and 35 mm rail mount relay socket. The V17 socket has two spring terminals per relay contact suitable for two stripped wires up to 2.5 mm2, so looping/daisy chaining can be done on the socket and no external connector or terminal is needed. Quick connection by pressing the spring terminal with a flat-bladed screw driver and inserting the stripped wire. Equipped with an…

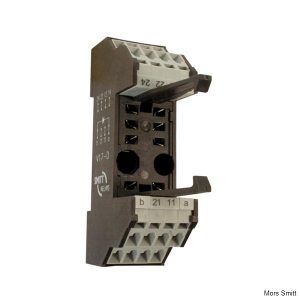

  • V17-D relay socket

     35mm (DIN) rail mounting, relay socket. For heavy duty, industrial applications, space saving design. Installation and replacement of plug-in relays are made easy and cost saving. No maintenance is required for the user. The V17-D relay socket has spring terminals. (more…)

  • V18 socket – PCB mount

     The V18 is a relay socket for soldering on PCB. The relay will be plugged into the socket, the socket will be soldered on the PCB. There is only one way of connecting the relay to the socket to guarantee correct placement of the relay. Equipped with an integrated retaining clip. To prevent fault relay placement the socket can be equipped with mechanical keying to accept only designated identical keyed…

  • V2 relay socket

     This product is no longer available. The replacement socket is the V23. V2, surface/wall mounting, compact relay socket For heavy duty, industrial applications, space saving design. Installation and replacement of plug-in relays is made easy and cost saving. No maintenance is required for the user. Description of V2 compact relay socket The V2 compact relay socket has one screw terminal per relay contact suitable for two wires up to 2.5 mm2…

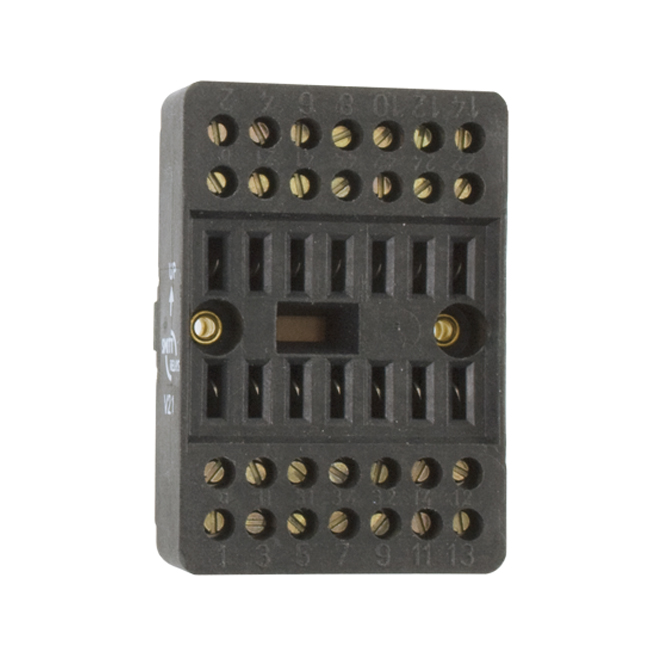

  • V21 relay socket

     This product is no longer available. The replacement socket is the V23. V21, 35 mm (DIN) rail mounting, compact relay socket For heavy duty, industrial applications, space saving design. Installation and replacement of plug-in relays is made easy and cost saving. No maintenance is required for the user. Description of V21 compact relay socket The V21 compact relay socket has one screw terminal per relay contact suitable for two wires…

  • V22BR socket – Screw terminal, wall mount

     The V22BR is a surface / wall mount relay socket with extra space for ring tabs. The V22BR socket has one screw terminal per relay contact suitable for two wires up to 2.5 mm2 and 9 mm ring tabs, so looping/daisy chaining can be done on the socket and no external connector or terminal is needed. To prevent fault relay placement the socket can be equipped with mechanical keying to…

  • V23 socket – Screw terminal, wall/rail mount

     The V23 is a surface / wall and 35 mm rail mount relay socket. The V23 socket has one screw terminal per relay contact suitable for two wires up to 2.5 mm2, so looping/daisy chaining can be done on the socket and no external connector or terminal is needed. The V23 relay socket has no internal soldering connections which makes it highly reliable. To prevent fault relay placement the socket…

  • V23BR socket – Screw terminal, rail mount

     The V23BR is a 35 mm rail mount relay socket with extra space for ring tabs. The V23BR socket has one screw terminal per relay contact suitable for two wires up to 2.5 mm2 and 9 mm ring tabs, so looping/daisy chaining can be done on the socket and no external connector or terminal is needed. To prevent fault relay placement the socket can be equipped with mechanical keying to…

  • V24 relay socket

     This product is no longer available. The replacement socket is the V23 or the V29. V24, surface/wall mounting, relay socket For heavy duty, industrial applications, space saving design. Installation and replacement of plug-in relays is made easy and cost saving. No maintenance is required for the user. Description of V24 relay socket The V24 relay socket has faston terminals Features of V24 relay socket Sturdy faston terminals Surface/wall mounting Touch…

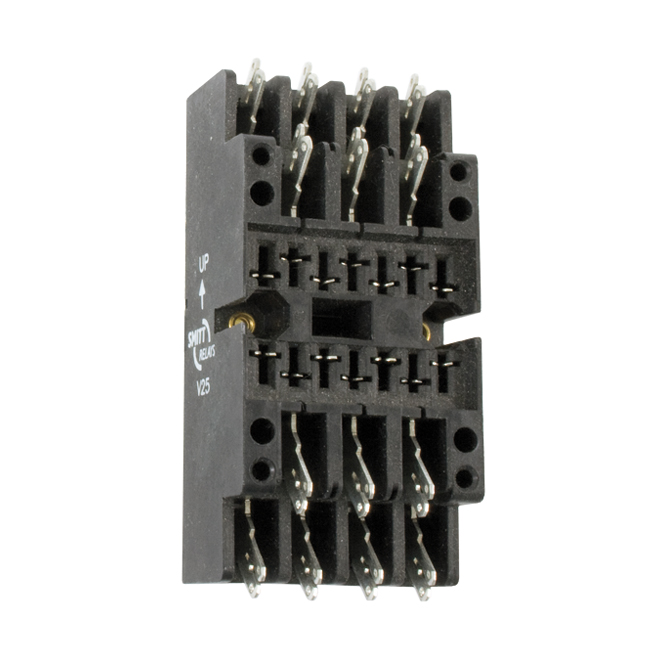

  • V25 relay socket

     This product is no longer available. The replacement socket is the V23 or the V29. V25, 35 mm (DIN) rail mounting, relay socket For heavy duty, industrial applications, space saving design. Installation and replacement of plug-in relays is made easy and cost saving. No maintenance is required for the user. Description of V25 relay socket The V25 relay socket has faston terminals. Features of V25 relay socket Sturdy faston terminals 35 mm (DIN)…

  • V26 socket – Crimp terminal, panel mount

     The V26 is a panel mount relay socket with one terminal per relay contact. The wires are crimped on separate crimp contacts A260 for insertion after crimping. To prevent fault relay placement the socket can be equipped with mechanical keying to accept only designated identical keyed relays. (more…)

  • V29 socket – Spring clamp terminal, wall/rail mount

     The V29 is a surface / wall and 35 mm rail mount relay socket. The V29 socket has two highly reliable spring clamp terminals per relay contact, so looping/daisy chaining can be done on the socket and no external connector or terminal is needed. The spring clamp terminal makes a quick connection possible by pressing the spring with a flat-bladed screwdriver and inserting the stripped wire. Solid and (fine) stranded…

  • V3 socket – Soldering terminals, panel mount

     The V3 is a panel / flush mount relay socket for soldering wires onto solder tags. The V3 socket has one terminal per relay contact. The V3 relay socket has no internal connections which makes it highly reliable. To prevent fault relay placement the socket can be equipped with mechanical keying to accept only designated identical keyed relays. (more…)

  • V31 socket – Faston terminal, panel mount

     The V31 is a panel mount relay socket. The V31 socket has two faston connections per relay contact, so looping/daisy chaining can be done on the socket and no external connector or terminal is needed. To prevent fault relay placement the socket can be equipped with mechanical keying to accept only designated identical keyed relays. Clear UP arrow for correct mounting. (more…)

  • V32 socket – PCB mount

     The V32 is a relay socket for soldering on PCB. The relay will be plugged into the socket, the socket will be soldered on the PCB. There is only one way of connecting the relay to the socket to guarantee correct placement of the relay. (more…)

  • V33 socket – Spring clamp terminal, panel mount

     The V33 is a panel/flush mount relay socket. The V33 socket has a base with two highly reliable spring clamp terminals per relay contact, so looping/ daisy chaining can be done on the socket and no external connector or terminal is needed. The spring clamp terminal makes a quick connection possible by pressing the spring with a flat-bladed screwdriver and inserting the stripped wire. Solid and (fine) stranded wires up…
