Industrial plug-in power relays

  • CU-W series, miniature instantaneous relays

     CU-W relays, 2 C/O, 6A, AC coil Heavy duty miniature power relays for demanding applications, switching of AC&DC voltages, resistive and/or inductive loads. Plug in (CU) or PCB (CP) Miniature power relay 2 C/O contacts AC coil Coil voltages 24...240VAC Flash barriers Cadmium free contacts Equipped with keying

  • D series, instantaneous power relays

     D relays, 4 C/O, 10A Heavy duty relays for demanding applications, switching of AC&DC voltages, resistive and/or inductive loads. Plug-in power relay Smitt-style pinning 4 C/O contacts Rated load 1 A /110 VDC1 , 10A/230 VAC1 Coil voltages 12...350 VDC, 12...440 VAC AC & DC coil (DC coil standard with back EMF diode) LED indicator Integrated 'snap-lock' retaining clip Dimensions 40 x 40 x 53 mm See the datasheet in the download section for all…

  • D-B series, high DC breaking capacity relays

     D-B relays, 4C/O, up to 7A/110V DC1 Heavy duty relays for demanding applications. Integrated magnetic arc blow-out function for higher DC breaking capacity. Plug in relay Smitt-style pinning 4 C/O contacts Rated load 7A /110V DC1 , 10A/230V AC1 Coil voltages 12...350VDC, 12...440VAC AC&DC coil, DC with standard back EMF diode LED indicator Integrated 'snap-lock' retaining clip Magnetic arc blow-out (option B) Dimensions 40 x 40 x 53 mm

  • D-BR4, fast switching & high breaking capacity relays

     D-BR4 relays, high DC breaking capacity, fast switching relays Heavy-duty, fast relay for demanding applications. Fast switching/pull-in, integrated magnetic arc blow-out function for higher DC breaking capacity. Plug in relay Smitt-style pinning 4 C/O contacts Rated load 7A /110V DC1 Coil voltages 6...220VDC DC coil Integrated 'snap-lock' retaining clip Magnetic arc blow-out (option B standard) Fast switching Back EMF diode Dimensions 40 x 40 x 53 mm

  • D-BV relay – High DC breaking capacity, 4 C/O, 10 A

     Rugged plug-in relays for extreme reliable, long endurance applications in harsh environment. Proven reliable operation in switching high DC voltage / inductive loads and low currents. Compact design, choice of many options and a wide range of sockets makes the D-BV relay an easy and flexible solution to use.

  • D-BW safety relay, 4 contacts, 10A

     The D-relays series are designed for demanding industrial applications such as power utilities and petrochemical industries. The construction of the relay and choice of materials makes the D-relay suitable to withstand corrosive atmosphere, low and high temperatures and vibrating environments. (more…)

  • D-BX5 series, high DC breaking capacity (10A) relays

     D-BX5 relays, 2NO + 2NC, up to 10A/110V DC1 Heavy duty relays for demanding applications. Integrated magnetic arc blow-out function and contact gap 2mm for higher DC breaking capacity. Plug in relay Smitt-style pinning 2NO + 2NC contacts Rated load 10A /110V DC1 , 10A/230V AC1 Coil voltages 12...220VDC, 12...380VAC AC&DC coil, DC with standard back EMF diode LED indicator Integrated 'snap-lock' retaining clip Magnetic arc blow-out (option B) Contact…

  • D-BYX5 series, high DC breaking capacity (12A) relays

     D-BYX5 relays, 1 DM-DB, up to 12A/110V DC1 Heavy duty relays for demanding applications. Integrated magnetic arc blow-out function and contact gap 4mm for higher DC breaking capacity. Plug in relay Smitt-style pinning 1 double make double break contact (option Y, standard) Rated load 12A /110V DC1 , 10A/230V AC1 Coil voltages 12...220 VDC, 12...380 VAC AC&DC coil, DC with standard back EMF diode Dimensions 40 x 40 x 53…

  • D-E series, low current switching relay

     D relays, 4 C/O, 10A Heavy duty relays for demanding applications, suitable for low current switching, equipped with gold plated contacts. Plug-in power relay Smitt-style pinning 4 C/O contacts, gold plated Rated load 1A /110V DC1 , 10A/230V AC1 Coil voltages 12...350VDC, 12...440VAC AC&DC coil (DC coil standard with back EMF diode) LED indicator Integrated 'snap-lock' retaining clip Dimensions 40 x 40 x 53 mm

  • D-R4, fast relay (pull-in)

     D-R4, fast relay (pull-in) Heavy-duty, fast relay for demanding applications. Fast switching/pull-in Plug in relay Fast switching Smitt-style pinning 4 C/O contacts Rated load 1A /110V DC1 Coil voltages 6...220VDC DC coil Integrated 'snap-lock' retaining clip Back EMF diode Dimensions 40 x 40 x 53 mm

  • D-YB series, high DC breaking capacity (8A) relays

     D-YB relays, 2 DM-DB contacts, up to 8A/110V DC1 Heavy duty relays for demanding applications. Integrated magnetic arc blow-out function and double make - double break contacts for higher DC breaking capacity. Plug in relay Smitt-style pinning 2 double make double break contacts Rated load 8A /110V DC1 , 10A/230V AC1 Coil voltages 12...220VDC, 12...380VAC AC&DC coil, DC with standard back EMF diode LED indicator Integrated 'snap-lock' retaining clip Magnetic arc blow-out (option B)…

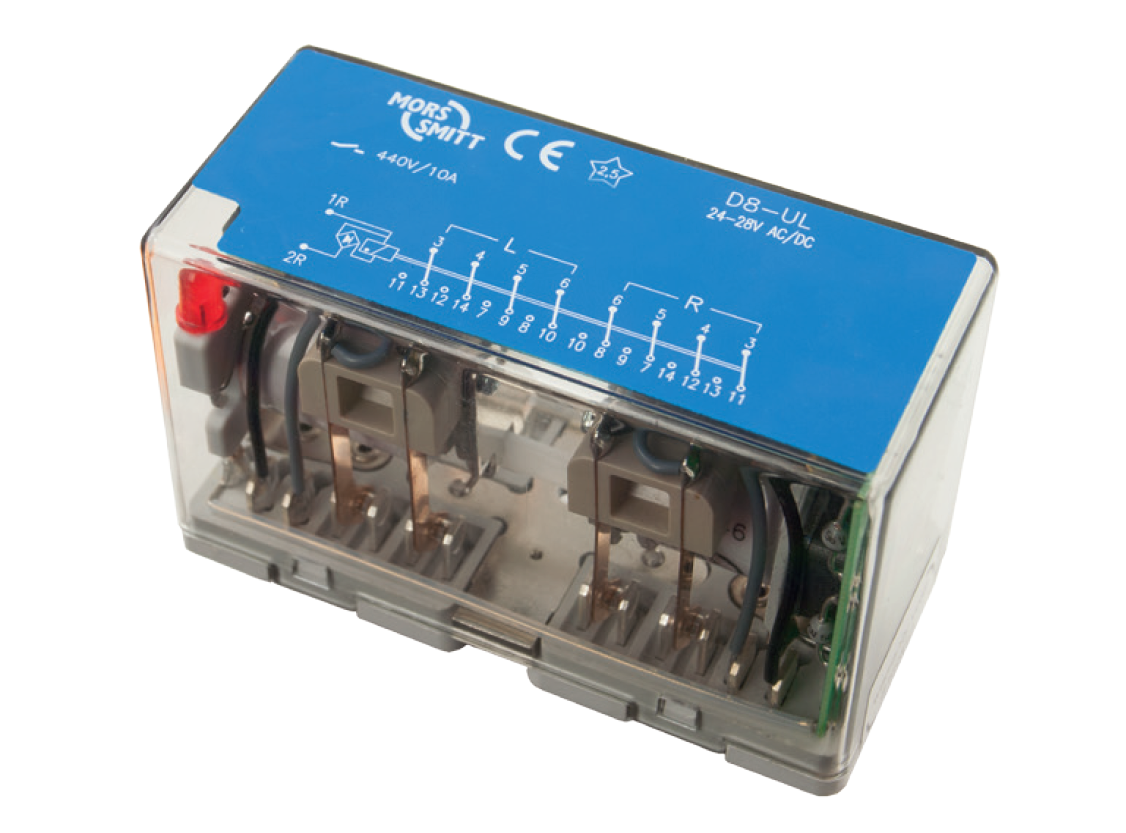

  • D8 relay series, Industrial power relay, 8 contacts, 10A

     Plug-in industrial power relay with 8 change-over contacts. Standard equipped with a LED indicator and back EMF suppression diode (for DC voltages). Optionally equipped with magnetic arc blow-out for high breaking capacity and long contact life. No external retaining clip needed as integrated ‘snap-lock’ will hold relay into socket under all circumstances and mounting directions. The construction of the relay and choice of materials makes the D8 relay suitable to…

  • Delta-Flex

     Modular auxiliary relay system Delta-Flex (more…)

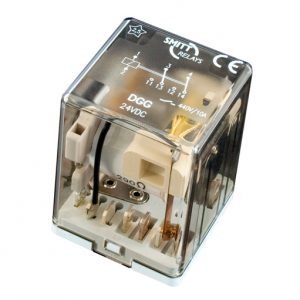

  • DGG series, low operate voltage relays

     DGG relays, 2 C/O, pull-in voltage 0,4 x Unom Heavy duty relays wth extremely sensitive coil (pull-in 0,4 x Unom) for demanding applications. Plug in relay Smitt-style pinning 2 C/O contacts Rated load 1A /110V DC1 , 10A/230V AC1 Coil voltages 12...220VDC DC coil, DC with standard back EMF diode LED indicator Integrated 'snap-lock' retaining clip Extreme sensitive coil (pull-in voltage 0,4 x Unom) Dimensions 40 x 40 x 53 mm

  • DI series, current monitoring, power relays

     D-I series, 2 C/O, 10A (more…)

  • EA 111 relay socket

     The EA 111 is a relay socket for all A/B platform relays, with two highly reliable spring clamp terminals per socket. The socket can be mounted on a surface/wall and 35 mm rail. Hexagonal plastic keys and round plastic plugs are provided for relay type coding, not inserted. Keying can be provided as an option. (more…)
