High speed plug-in tripping relays

Fast switching D-series relay with a trip time of < 7 ms. Suitable for demanding, critical applications.

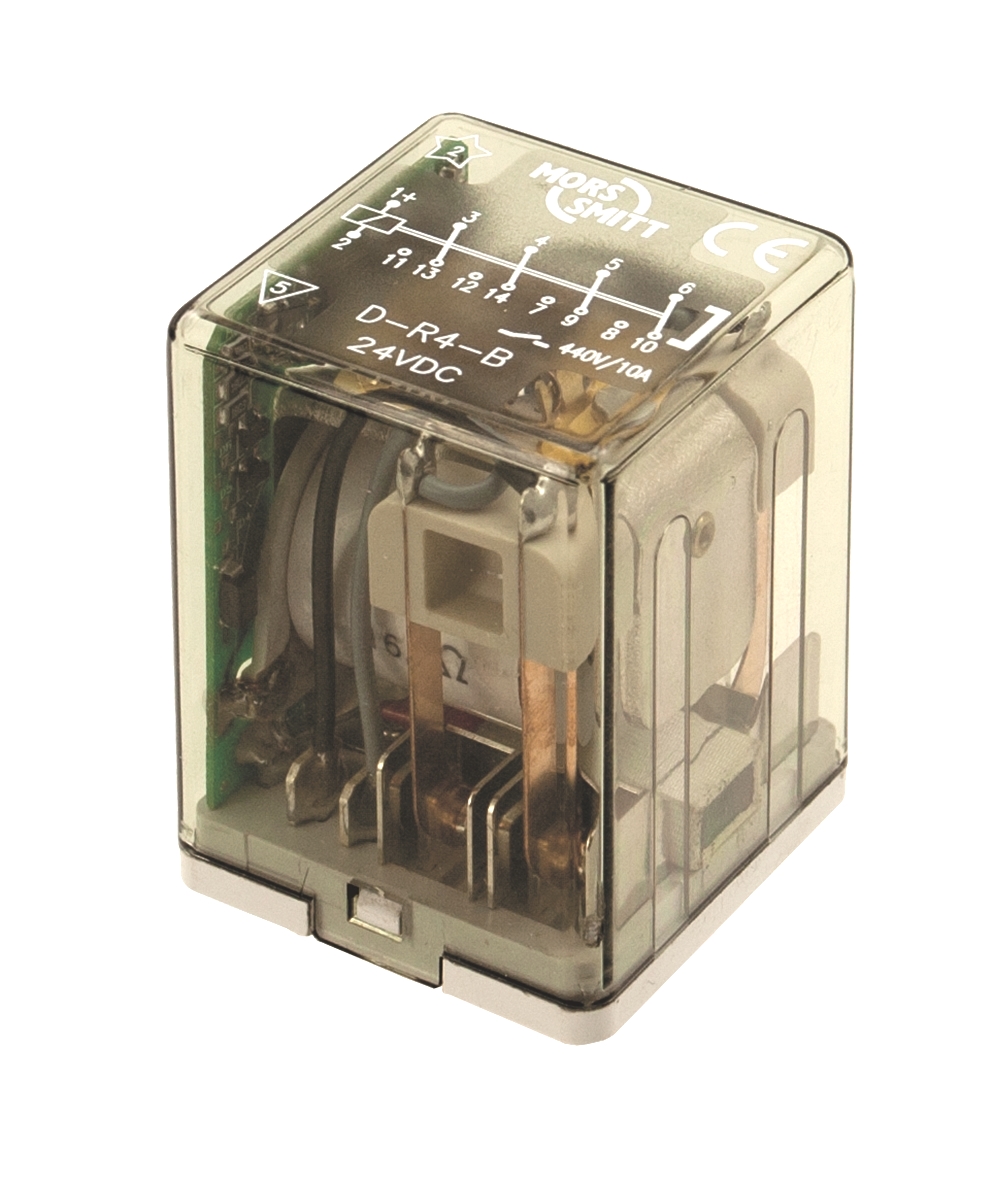

  • D-BR4, fast switching & high breaking capacity relays

    D-BR4 relays, high DC breaking capacity, fast switching relays Heavy-duty, fast relay for demanding applications. Fast switching/pull-in, integrated magnetic arc blow-out function for higher DC breaking capacity. Plug in relay Smitt-style pinning 4 C/O contacts Rated load 7A /110V DC1 Coil voltages 6...220VDC DC coil Integrated 'snap-lock' retaining clip Magnetic arc blow-out (option B standard) Fast switching Back EMF diode Dimensions 40 x 40 x 53 mm

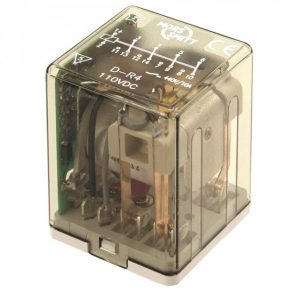

  • D-R4, fast relay (pull-in)

    D-R4, fast relay (pull-in) Heavy-duty, fast relay for demanding applications. Fast switching/pull-in Plug in relay Fast switching Smitt-style pinning 4 C/O contacts Rated load 1A /110V DC1 Coil voltages 6...220VDC DC coil Integrated 'snap-lock' retaining clip Back EMF diode Dimensions 40 x 40 x 53 mm
